Description

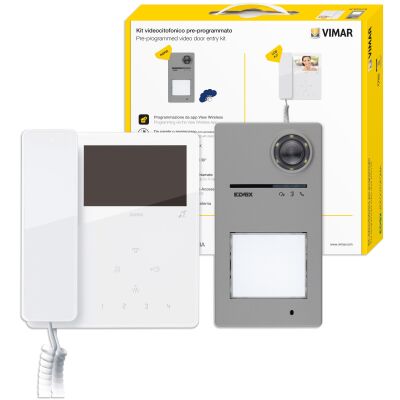

Expandable Due Fili Plus color video intercom kit.
The white wall-mounted Tab 4.3 video intercom for the Due Fili Plus system has a handset, 4.3 LCD color display and speaker for electronic calls. On the front there is a capacitive keypad for intercom functions and intercom calls. It has a teleloop for hearing aids and a bracket for fixing to a rectangular or round box.
The Roxie entrance panel from the Due Fili Plus series is programmable from the View Wireless App with standard Bluetooth technology. With RFID it is possible to control access while the color camera has a 130° wide-angle lens. It is designed for 4 white LED backlit call buttons with twilight management of the lighting and call status signaling LED. It is possible to operate a lock and includes an external camera input. Inside we find an input that can be configured as an external door opener button CA or door open PA and a direct opening output for an electric lock.
The components of the kit are supplied with an ID identification code, already pre-configured. If installing the video door entry kit in a larger system, for example adding an external unit and/or additional internal units and for any advanced/optional configurations (for example programming buttons for auxiliary functions or intercom calls), refer to the instruction manuals for the video intercom, the electronic unit and the Due Fili Plus system.
Datasheet
• Video kit K7549.R
• 1 7549 Video intercom Tab4.3
• 1 40170 Roxie license plate
• 1 40175 5 Mifare RFID door opener keys
• 1 401712 Button
• 1 40110 Power supply
