Description

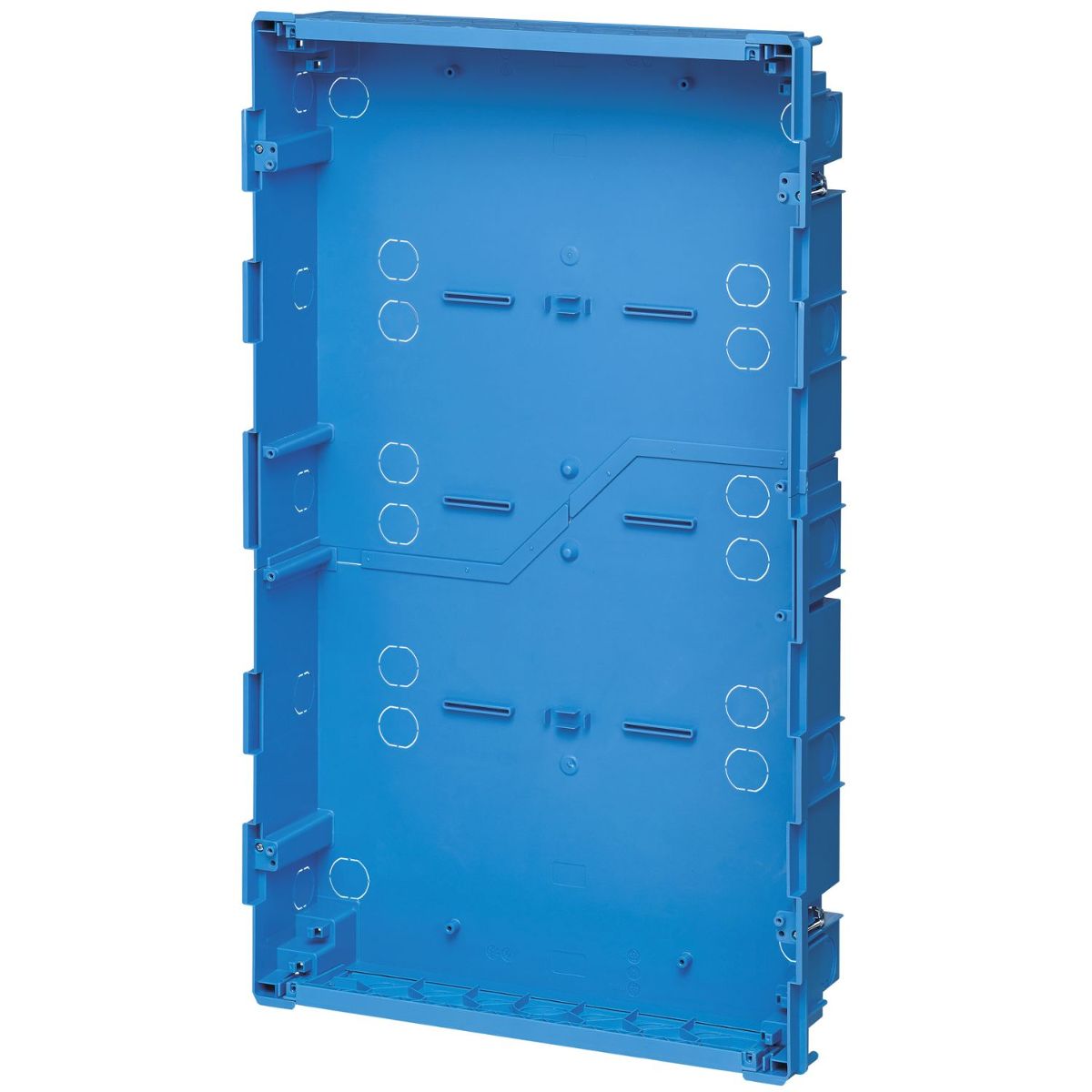

Flush-mounted box designed to house 72 DIN module aesthetic switchboards, such as the Vimar V53172.B.
Made of self-extinguishing polyamide (GW 850°C), it is intended for installation on lightweight walls.
The blue color facilitates identification during installation, while the box offers an IP40 protection rating, ensuring adequate protection against solid objects greater than 1 mm.
Its compact size allows for discreet and functional installation.
Datasheet
• Number of DIN 72 modules
• Self-extinguishing polyamide material (GW 850°C)
• Light blue color
• Mounting type: Recessed on light walls
• Degree of protection IP40
• Insulation class II

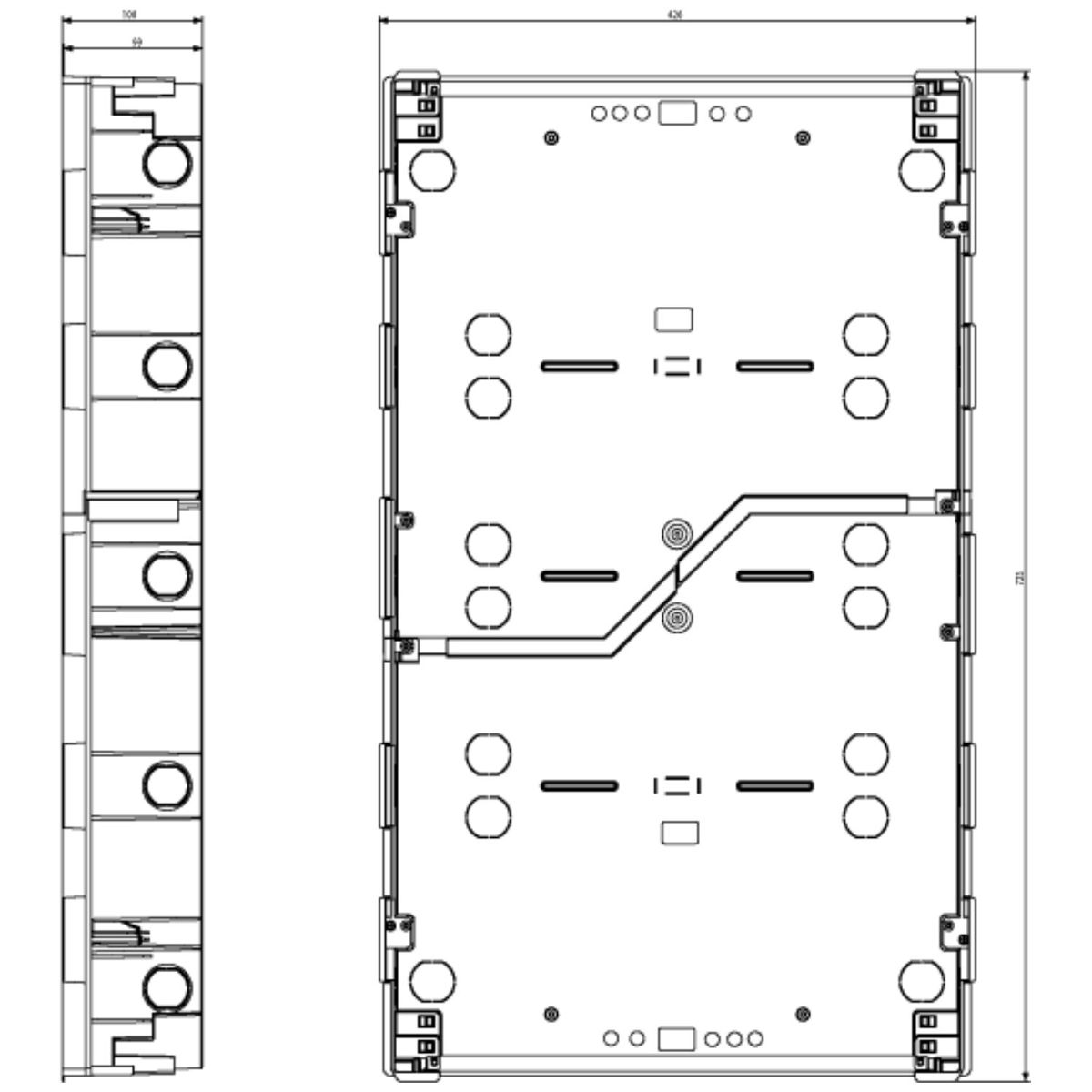

• Dimensions (W x H x D) 426 x 723 x 100 mm
• Number of conductor inputs 6
• Compatibility with Vimar V53172.B aesthetic switchboard
