Description

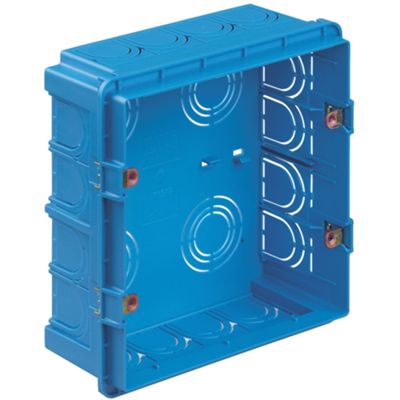

Rectangular 8-module flush-mounted box, designed for installation on masonry walls, made of heat-resistant plastic up to 650°C (GW 650°C), offers ample internal space for wiring.
The box has pre-cut holes for the insertion of pipes of different sections, facilitating installation.
It is compatible with a wide range of accessories, including mortar guard lids, aesthetic lids and union joints to create multiple battery boxes.
The brackets for fixing the screws of the supports are treated with zinc plating and covered with paraffin to prevent the thread from clogging during installation and to facilitate screwing.
Datasheet
• Compatibility with Vimar civil series
• Recessed mounting type
• Plastic material (halogen-free)
• Light blue color
• Rectangular shape
• Number of modules 8
• Dimensions (L x W) 145 x 124.5 mm
• Internal depth 50 mm
• Total depth 56.8 mm
• Number of entrances 12
• Diameter of supported pipes 20/25 mm
• Heat resistance GW 650°C
• Fixing of the devices screw
• Pipe passage through knockout hole
