Description

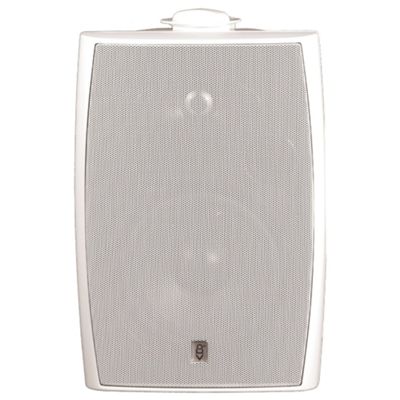

Directional wall speaker, ideal for voice evacuation systems and Hi-Fi environments, equipped with a 16.5 cm woofer and a 2.5 cm tweeter with silk/aluminium membrane, offers easy insertion via bracket.
Dispersion is 90°×90° (up to 120° below 3 kHz). Power output is switchable: 60 W RMS into 8 Ω (120 W musical) or 10/20/40 W into 100 V line (80 W peak).
Sensitivity of 92 dB, frequency response of 60 Hz to 20 kHz, recommended amplification of 10 to 80 W RMS.
Datasheet
• 16.5 cm woofer
• 2.5 cm tweeter, silk/aluminium membrane
• Dispersion 90°×90° (120° up to 3 kHz)
• Selectable impedance 8 Ω or 100 V line
• Power @ 8 Ω 60 W RMS / 120 W musical
• Line power 100 V 10 / 20 / 40 W RMS (80 W peak)
• Sensitivity 92 dB
• Frequency range 50 Hz – 20 kHz
• SPL max approximately 108 dB (100 V)
• Mounting bracket included
• Dimensions (without bracket) 208 × 320 × 185 mm
• Dimensions (with bracket) 208 × 334 × 200 mm
• Color white RAL 9003
