Description

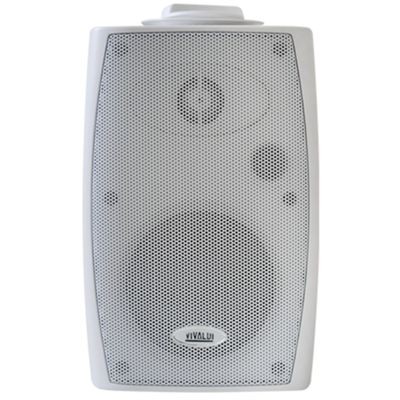

Directional wall speaker, ideal for voice evacuation systems and Hi‑Fi environments, equipped with an 11 cm woofer and a 2.5 cm tweeter with silk/aluminium membrane, it offers easy insertion via a bracket.
Dispersion is 90°×90° (up to 120° below 3 kHz). Power output is switchable: 40 W RMS into 8 Ω (80 W musical) or 5/10/20 W into 100 V line (40 W peak).
Sensitivity of 89 dB, frequency response of 60 Hz to 20 kHz, recommended amplification of 10 to 50 W RMS.
Datasheet
• 11 cm woofer
• 2.5 cm tweeter, silk/aluminium membrane
• Dispersion 90°×90° (120° up to 3 kHz)
• Selectable impedance 8 Ω or 100 V line
• Power @ 8 Ω 40 W RMS / 80 W musical
• Line power 100 V 5 / 10 / 20 W RMS (40 W peak)
• Sensitivity 89 dB
• Frequency range 60 Hz – 20 kHz
• SPL max approximately 106 dB (100 V)
• Mounting bracket included
• Dimensions (without bracket) 130 × 195 × 115 mm
• Dimensions (with bracket) 130 × 215 × 130 mm
• Color white RAL 9003
