Description

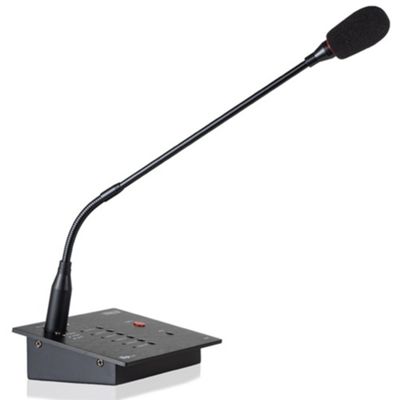

Active microphone base compatible with Vivaldi Ulisse amplifiers of the MZ6xxxBT series.
Allows selection of up to 6 zones, includes column microphone (gooseneck boom), “call/talk” buttons, AUX switching, priority management and RS485 line termination.
It is powered directly from the amplifier via RJ45 cable and can be daisy-chained (up to 6 units, max 300 m) for complex PA systems.
Datasheet
• 41cm condenser gooseneck microphone
• Zone selection of 6 zones via buttons
• Call/talk button
• Local AUX input (switches microphone)
• RJ45 RS485 port output to mixer/amplifier
• Cascading connection up to 6 bases, max 300 m via CAT6
• LED indicators for power, communication, “busy”, active zones
• Dip switch for setting base address, priority, bus termination
• Power supply via amplifier via RJ45 RS485
• Compatible with Vivaldi Ulisse MZ6xxxBT amplifiers
• Use selective or general paging in multi-zone PA systems
