Description

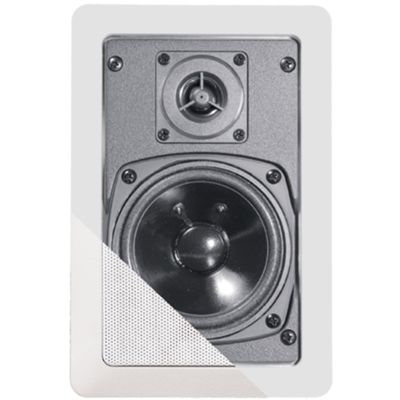

Frameless in-wall or drywall speaker, designed for integrated audio systems, featuring an 11 cm woofer and a 1.3 cm tweeter, offers 30 W RMS power (60 W peak), 88 dB sensitivity and is recommended for amplification from 10 to 40 W RMS, with an extended frequency response from 60 Hz to 20 kHz and wide dispersion (120°).
Datasheet
• 11 cm woofer
• 1.3 cm Mylar tweeter
• Power 30 W RMS / 60 W musical
• Impedance 8 Ω
• Sensitivity 88 dB
• Frequency range 60 Hz – 20 kHz
• 120° dispersion (vertical/horizontal)
• Recommended amplifier power 10–40 W RMS
• Dimensions 147 × 222 × 60 mm
• Mounting hole 120 × 195 mm
• ABS body with metal grille
• White RAL 9016 colour, paintable; GIADA10.R version for finishing
• Flush-mounted installation on plasterboard/wood without accessories, on brickwork with SR10 box
• Operating temperature –20 °C to +65 °C
