Description

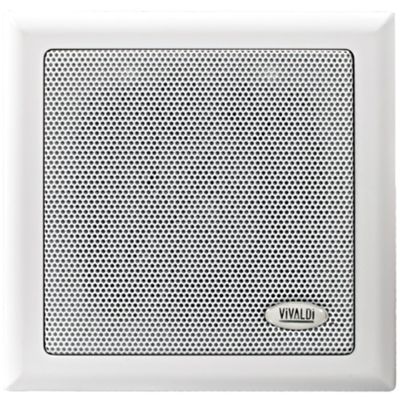

Square, recessed speaker, perfect for home or professional audio systems, it features a 7.5 cm woofer with polypropylene diaphragm and is designed to offer compact Hi‑Fi quality: 30 W RMS, 60 W musical and up to 90 W peak.
Sensitivity of 85 dB and an operating range of 65–18 000 Hz make it suitable for sources from 10–40 W RMS.
It is installed directly in the standard 506E electrical box, with a body that can be painted in RAL 9016 and very low depth (48 mm).
Datasheet
• 7.5 cm woofer, polypropylene membrane
• Rated power 30 W RMS
• Music power 60 W
• Peak power 90 W
• Impedance 8 Ω
• Sensitivity 85 dB
• Frequency response 65 Hz – 18 kHz
• Recommended amplifier 10–40 W RMS
• Dimensions 125 × 125 × 48 mm
• Installation of standard 506E box
• White RAL 9016 colour, paintable (customised version GIADA506.R available)
• Working temperature from –20 °C to +65 °C
