Description

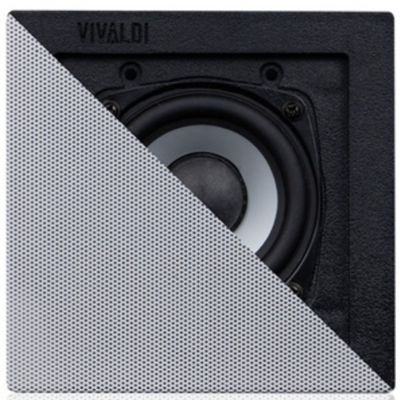

Ultra compact and flat speaker (only 48 mm thick), designed to meet the needs of multi-zone systems or quality home audio.
The 7.5 cm woofer with polypropylene diaphragm guarantees a power of 30 W RMS (60 W peak up to 90 W) and a sensitivity of 85 dB, with an operating frequency from 65 Hz to 18 kHz.
The “frameless” installation makes it perfect for plasterboard, with an ABS V0 body, painted galvanized grille and minimum depth, also adapting to the version with black grille on request.
Datasheet
• 7.5 cm woofer, polypropylene membrane
• Power 30 W RMS / 60 W musical / 90 W peak
• Impedance 8 Ω
• Sensitivity 85 dB
• Frequency range 65 Hz – 18 kHz
• Recommended amplifier 10–40 W RMS
• Dimensions 125 × 125 × 48 mm
• Installation on 506E box
• ABS V0 body, painted galvanized grille
• Colour white RAL 9016, paintable (optional black grille)
• Operating temperature from –20 °C to +65 °C
