Description

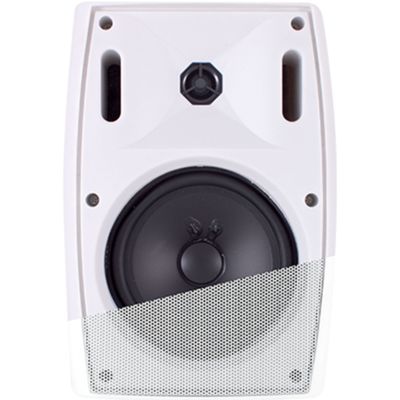

Directional wall speaker, ideal for voice evacuation systems (voice alarm) thanks to the EN60849 and EN54‑24 certification (n. 0068‑CPR‑017/2016).
It features a 13.5 cm woofer and a 2.5 cm Mylar tweeter, offers 90×90° dispersion (up to 120° below 3 kHz), and guarantees accurate audio performance with 92 dB sensitivity.
It is selectable between 8 Ω (40 W RMS, 80 W musical) and 100 V line with 2.5/5/10/20 W. Wall mounting on included bracket, ABS body and painted galvanized steel grille, operating temperature from -20 °C to +80 °C.
The product is ideal for both large PA environments and HI‑FI applications when not in use as an alarm.
Datasheet
• 13.5 cm woofer
• 2.5 cm Mylar tweeter
• Dispersion 90°×90° (120° up to 3 kHz)
• Selectable impedance 8 Ω or 100 V line
• Power (8 Ω) 40 W RMS / 80 W musical
• Line power 100 V 2.5 / 5 / 10 / 20 W RMS (40 W peak)
• Sensitivity 92 dB
• Frequency range 70 Hz – 20 kHz
• Max SPL at full power 105 dB
• Mounting type: Wall bracket included
• Dimensions 176 × 251 × 161 mm; with bracket 176 × 286 × 190 mm
• ABS case materials, painted galvanized steel grille
• EN60849 and EN54‑24 certifications (n. 0068‑CPR‑017/2016)
• IP32 protection rating
• Operating temperature: –20 °C to +80 °C
