Description

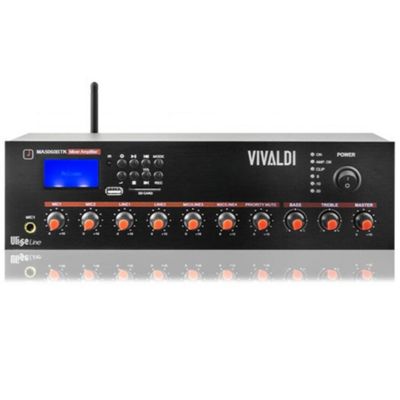

The Vivaldi Ulisse MA5120BTK is a compact mixer amplifier, ideal for sound reinforcement applications in shops, offices and public address systems.
It offers 120 W output power at low impedance or 70/100 V line, six mixable inputs (between mic, line, telephone) with priority/talkover function, plus digital sources (Wi‑Fi, FM, MP3 from USB/SD, Bluetooth, AirPlay).
Featuring IR remote control, adjustable tones, balanced outputs and rugged 10 lb (4.6 kg) metal construction.
Datasheet
• Output power 120 W @ 4‑8‑16 Ω or 70/100 V line
• 6-channel mixable inputs + integrated sources
• CH1 XLR mic 5‑8 mV/600 Ω, selectable phantom, priority/talkover
• CH2‑3 Mic jack 5‑8 mV/600 Ω or line RCA 150‑470 mV (switchable)
• CH4‑5 RCA line inputs
• CH6 telephone input 600 Ω, 100 mV
• Digital sources Wi‑Fi, FM, MP3 (USB/SD), Bluetooth, AirPlay
• Fixed RCA line out 0.775 V (0 dBV)
• IR remote control included
• Bass and treble control
• Power supply AC 110‑240 V and DC 24 V
• Consumption approximately 200 VA
• Dimensions 319×93×255 mm (2U rack with PSK)
• Black metal cabinet with orange silkscreens
