Description

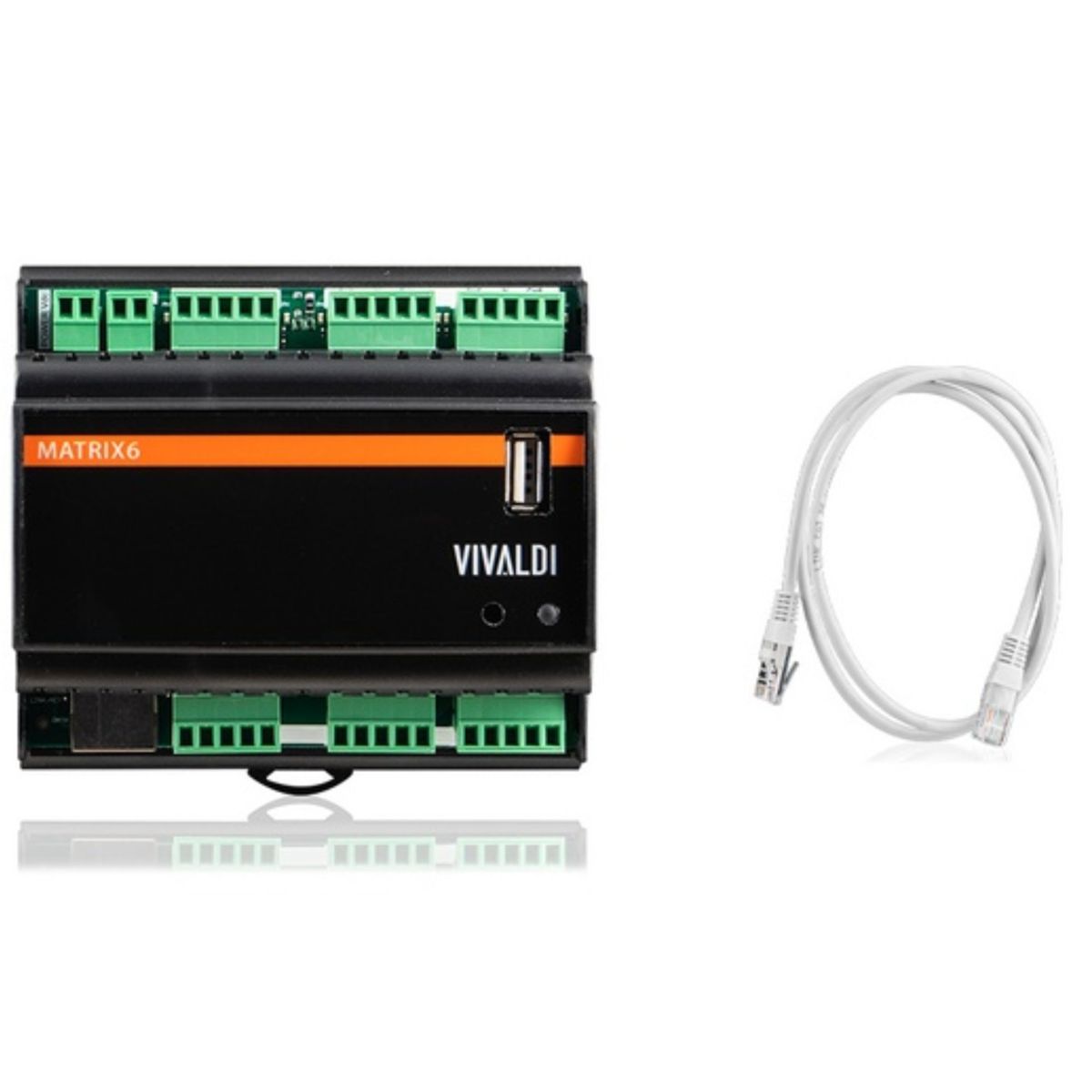

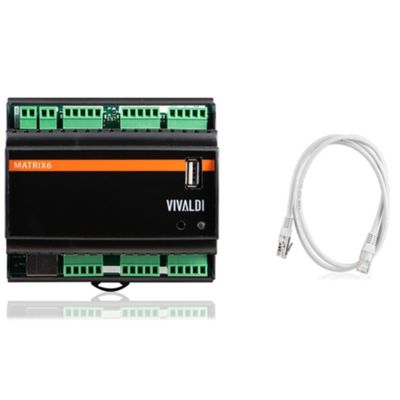

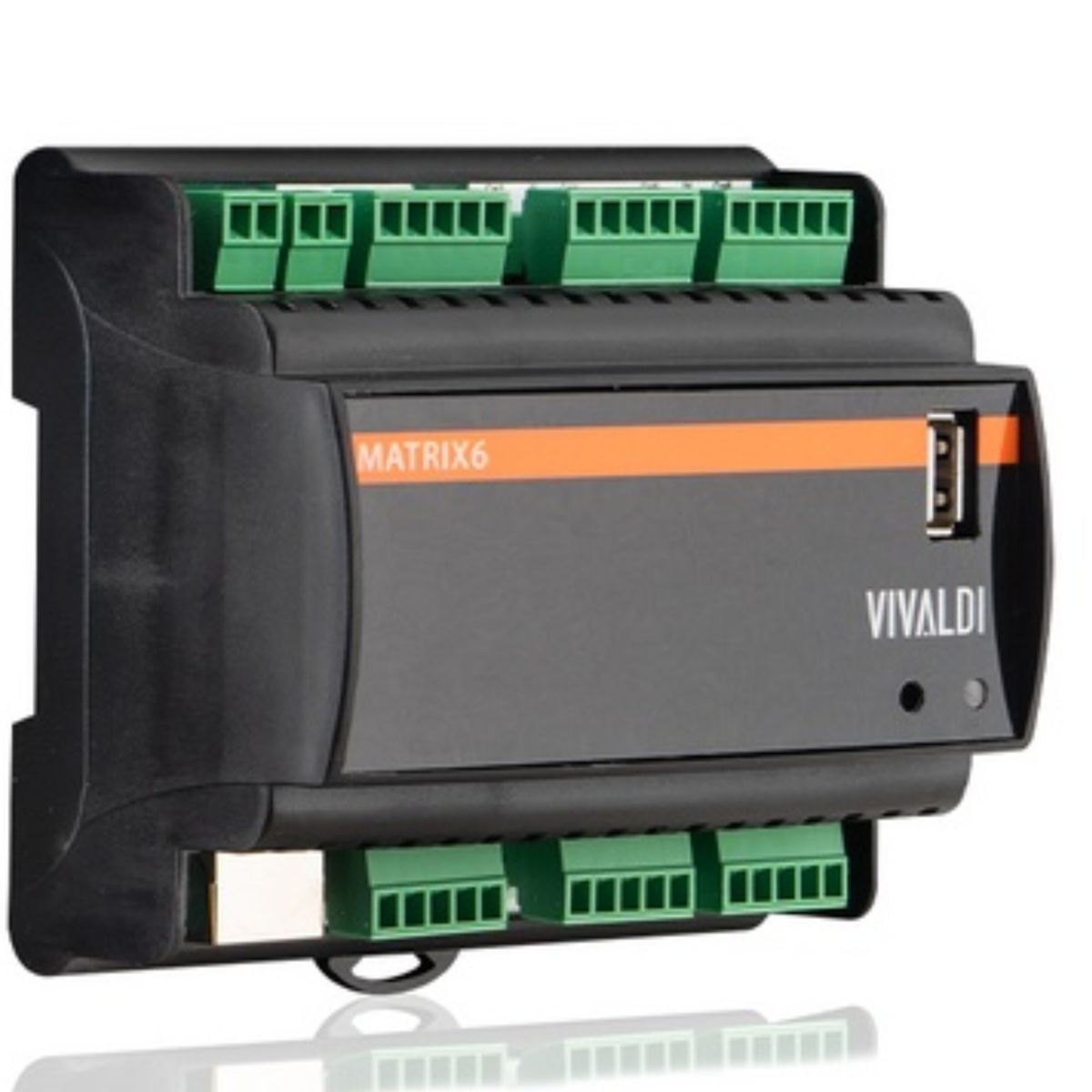

DIN rail-mounted digital matrix (6 modules) equipped with 6 balanced inputs selectable between line and microphone (with 24 V phantom power) and 6 analog outputs with independent buffering.
It integrates a multimedia player for streaming (Spotify Premium, AirPlay, WebRadio, USB files) with synchronization between devices on a LAN network via RJ45.
It features 3-band equalization, control via web interface or mobile app, and API (KNXnet/IP, MQTT, REST) for home automation integration.
24 V DC power supply via external power supply. Compact dimensions (106 × 90 × 63 mm).
Datasheet
• 6 balanced analog inputs (MIC/LINE), 24 V phantom, adjustable gain, HPF
• 6 balanced analog outputs with buffer, 3-band EQ, volume, mute
• Integrated player Spotify Connect (Premium), AirPlay, WebRadio, USB (MP3,WMA,...)
• Multi-room audio synchronization via LAN (TCP ports 1704)
• Web interface control, iOS/Android apps, KNXnet/IP API, MQTT, REST

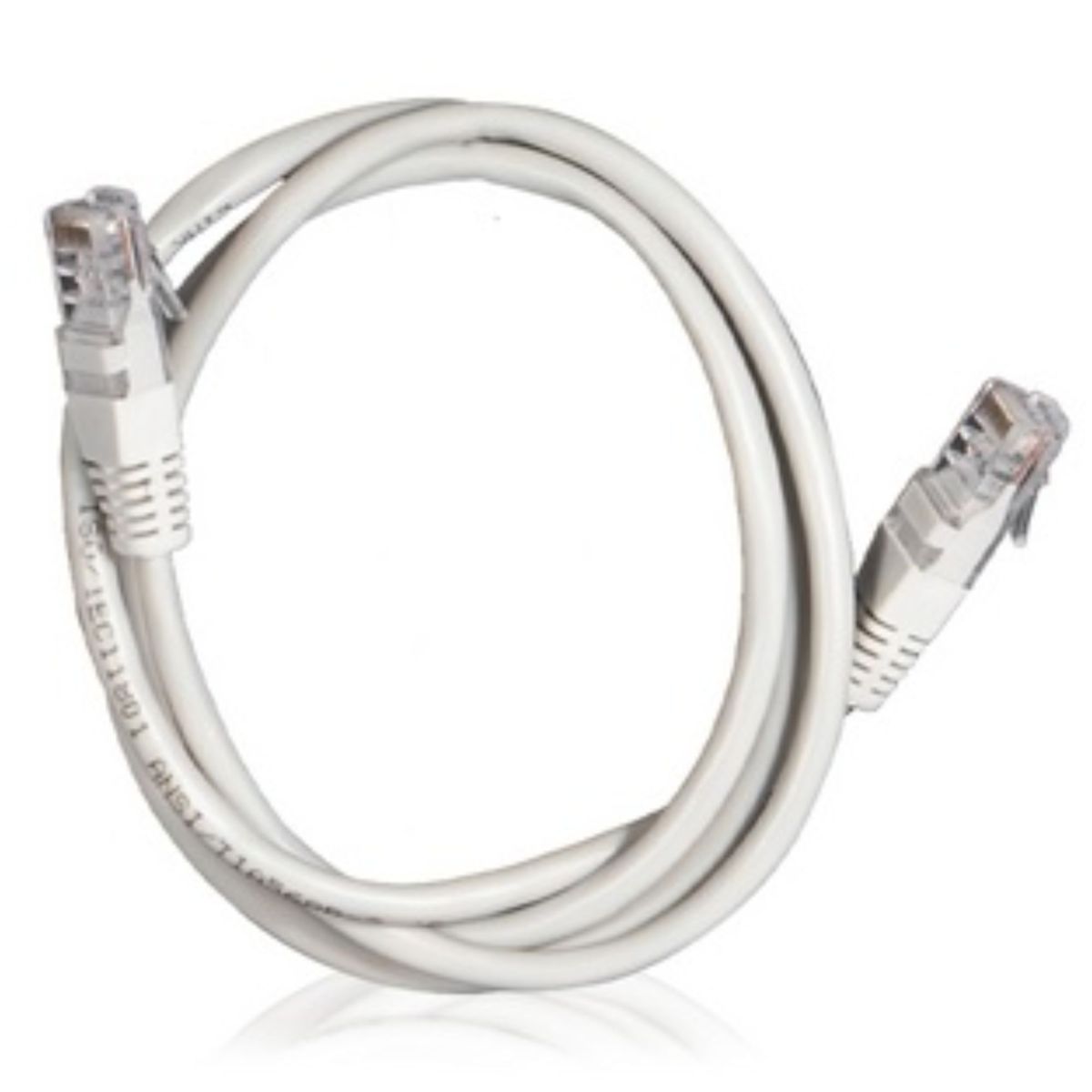

• Connectivity RJ45 Ethernet 10/100 Mbps, front USB-A (500 mA max)
• Power supply 24 V DC, max 700 mA (from external DIN power supply)
• Dimensions 106 × 90 × 63 mm
• DIN rail mounting (6 modules)
