Description

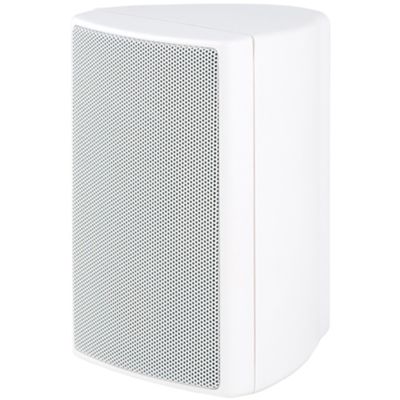

The Vivaldi Mini8 features an 8cm woofer and a 1.3cm tweeter with Mylar diaphragm, delivering detailed sound from 120Hz to 20kHz delivering 20W RMS into 8Ω (40W peak) and 100V modes (1.5/3/6W, 12W peak).
Supplied with swivel bracket, metal grille and ABS cabinet, it supports amplification from 10 to 30 W RMS
Datasheet
• 8 cm woofer
• 1.3 cm Mylar tweeter
• Power 8 Ω 20 W RMS
• Music power 40 W
• 100V mode 1.5 / 3 / 6W RMS (12W peak)
• Selectable impedance 8 Ω or 100 V line
• Frequency response 120 Hz – 20 kHz
• Sensitivity 85 dB
• Dispersion angle 90° (vertical/horizontal)
• Recommended amplification 10–30 W RMS
• ABS cabinet materials, metal bracket and grille
• Dimensions 94 × 140 × 100 mm
• Available colors: white RAL 9003 (MINI8W), black RAL 9005 (MINI8B), silver RAL 9023 (MINI8S)
• Operating temperature –10 °C to +50 °C
