Description

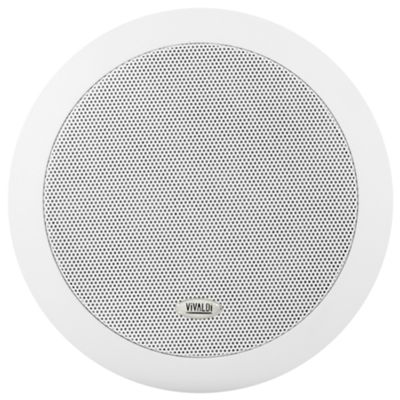

The ROUND12 is intended for quality audio systems integrated into plasterboard or soft surfaces.
Equipped with a 10 cm coaxial woofer and a 1.3 cm mylar tweeter, it delivers 25 W RMS power (50 W peak) with 86 dB sensitivity and a response from 70 Hz to 20 kHz.
Installation is simple thanks to the rear hooks; no drywall hardware is required, and it is not suitable for solid masonry.
The ABS cabinet with metal grille is paintable white RAL 9016 and resists temperatures from –20 °C to +65 °C.
Datasheet
• 10 cm coaxial woofer
• 1.3 cm mylar tweeter
• Power 25 W RMS / 50 W peak
• Impedance 8 Ω
• Sensitivity 86 dB
• Frequency response 70 Hz – 20 kHz
• 120° dispersion (vertical/horizontal)
• Dimensions Ø 167.5 × D 60 mm
• Mounting hole Ø 140 mm
• Body materials ABS, metal grille
• Plasterboard/wood installation without accessories; not suitable for masonry
• White RAL 9016 colour, paintable
• Operating temperature –20 °C to +65 °C
