Description

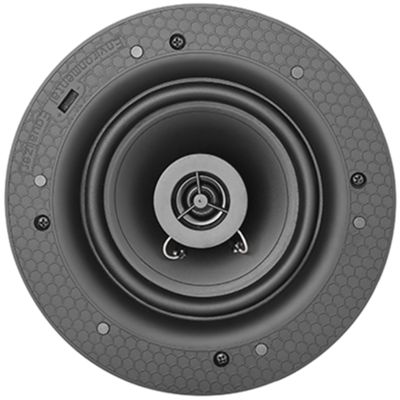

The ROUND13TF is designed for professional EVAC systems, compact, flush-mounted, with a 13.5 cm woofer and a 1.3 cm Mylar tweeter on a neodymium magnet.
It can handle multiple powers (2.5 / 5 / 10 / 15 W RMS) with peak up to 30 W and wide coverage (120° dispersion), ensuring vocal clarity.
It has a maximum SPL of 99 dB, sensitivity 87 dB and is EN60849 EN54‑24 certified (number 0068/CPR/071‑2018) when combined with the SQR13 fire cover.
Datasheet
• 13.5 cm (5.25″) woofer
• 1.3 cm Mylar tweeter, neodymium magnet
• Selectable power 2.5 / 5 / 10 / 15 W RMS
• Peak power 30 W
• 100 V line transformer
• Sensitivity 87 dB
• SPL max @ full power 99 dB
• Frequency range 70 Hz – 20 kHz
• 120° dispersion (vertical/horizontal)
• Total dimensions Ø 204 × D 90 mm
• Mounting hole Ø 177 mm
• Color white RAL 9016
• Operating temperature from –20 °C to +65 °C
• SQR13 fire cover accessory (optional)
