Description

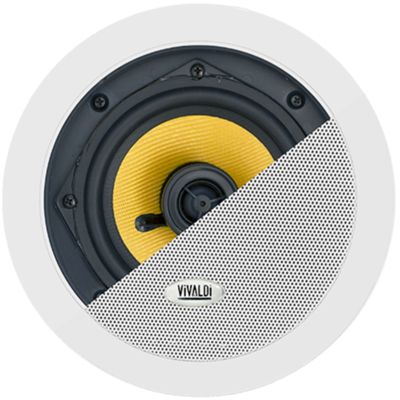

Circular built-in speaker designed for Hi-Fi or multi-room systems, ideal for plasterboard and false ceilings, thanks to the paintable white grille and integrated retention hooks.
It features a 13.5 cm fiberglass woofer and a 2.5 cm swiveling tweeter, offering balanced sound quality, with a sensitivity of 89 dB and 120° sound coverage.
Power is selectable via a 100V transformer (2.5/5/10W) and supports up to 20W peak, with an extended frequency response of 55Hz to 20kHz.
The ABS structure with metal grille and rear brackets simplifies installation, while the built-in version requires the SR13 metal box.
Datasheet
• 13.5 cm fiberglass woofer
• 2.5 cm adjustable tweeter
• Silk and aluminum membrane
• Selectable power 2.5 / 5 / 10 W RMS
• Peak power 20 W
• 100 V transformer
• Sensitivity 89 dB
• Frequency response 55 Hz – 20 kHz
• Angular dispersion: 120° vertical/horizontal
• Dimensions Ø 203 × D 75 mm
• Mounting hole Ø 165 mm
• ABS body, metal grille
• White RAL 9016 colour, paintable
• Operating temperature from –10 °C to +65 °C
• Plasterboard/wood assembly with rear hooks
