Description

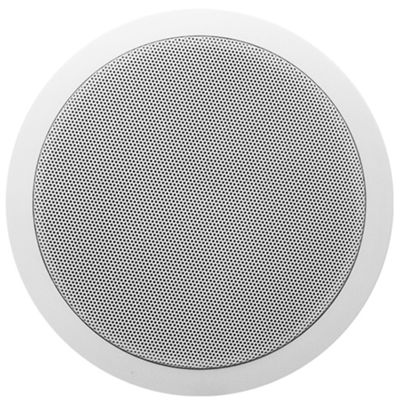

Discreetly designed in-wall speaker with 15.5 cm woofer offering selectable power between 3 and 6 W (12 W peak), in-line 100 V.
It features high sensitivity (about 93 dB) and wide dispersion (about 120°) for good sound diffusion.
Installation is simple thanks to the 170mm hole and the paintable white surface, compatible with plasterboard and false ceilings.
Perfect for environments such as offices, shops or bathrooms.
Datasheet
• Selectable power 3 / 6 W RMS (12 W peak)
• Line voltage 100 V
• Sensitivity 93 dB ± 3 dB
• Maximum SPL up to 104 dB
• Frequency range 100 Hz – 16 kHz
• Dispersion approximately 120° (vertical/horizontal)
• 15.5cm wide range woofer
• Maximum peak 12 W
• Built-in hole Ø 170 mm
• Total dimensions 188 × 76 mm (Ø × D)
• White RAL 9016 colour, paintable
• ABS cabinet with metal grille
• Operating temperature from –20 °C to +65 °C
