Description

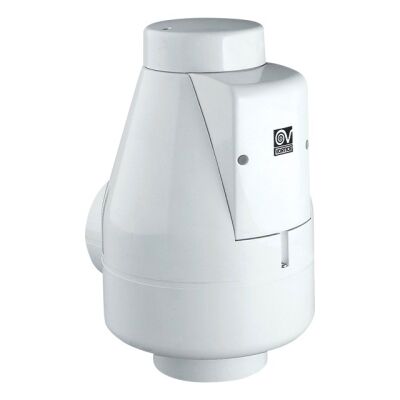

Inline centrifugal extractor designed for installation in residential environments, such as bathrooms and kitchens, made of UV-resistant plastic, guarantees durability and optimal performance over time.
The 2-speed motor, equipped with thermal protection and self-lubricating supports, offers a variable air flow between 86 and 140 m³/h, adapting to different ventilation needs.
The protective grille on the inlet ensures safe operation, while the Vortice speed controller allows efficient management of performance.
Datasheet
• Nominal diameter 100 mm
• In-line installation, suitable for ventilating up to two bathrooms or a single room
• UV-resistant plastic structure material
• 2-speed motor with thermal protection and shaft on self-lubricating supports
• Minimum air flow 86 m³/h, maximum 140 m³/h
• Sound pressure at 3 m minimum 33 dB(A), maximum 43 dB(A)
• IPX2 protection rating
• Insulation class II
• Voltage 220-240 V
• Maximum absorbed power 35 W
• Maximum ambient temperature for continuous operation 40°C
• Dimensions (A x B x C) 281 mm x 176 mm x 98 mm
