Description

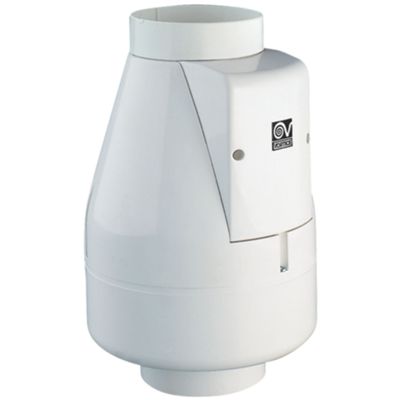

Centrifugal extractor designed for installation in ducts, with aligned intake and exhaust, suitable for ventilation of residential and commercial premises, construction in plastic resin resistant to aging attributable to exposure to the sun, with a nominal diameter of 100 mm.
Thermally protected 1-speed motor, with shaft mounted on self-lubricating bushing supports coupled with centrifugal impeller.
Its structure allows for simple installation and easy maintenance, made with high quality materials, it guarantees durability and reliable performance over time.
This model is particularly suitable for applications requiring a direct air flow along the duct.
Datasheet
• Nominal diameter 100 mm
• UV-resistant plastic resin material
• Single speed motor
• Maximum flow rate 135 m³/h
• Sound pressure at 3 m 41 dB(A)
• IPX2 protection rating
• Insulation class II
• Voltage: 220-240V
• Maximum power consumption: 27 W
• Dimensions (A x B x D x F) 168x176x97x270 mm
