Description

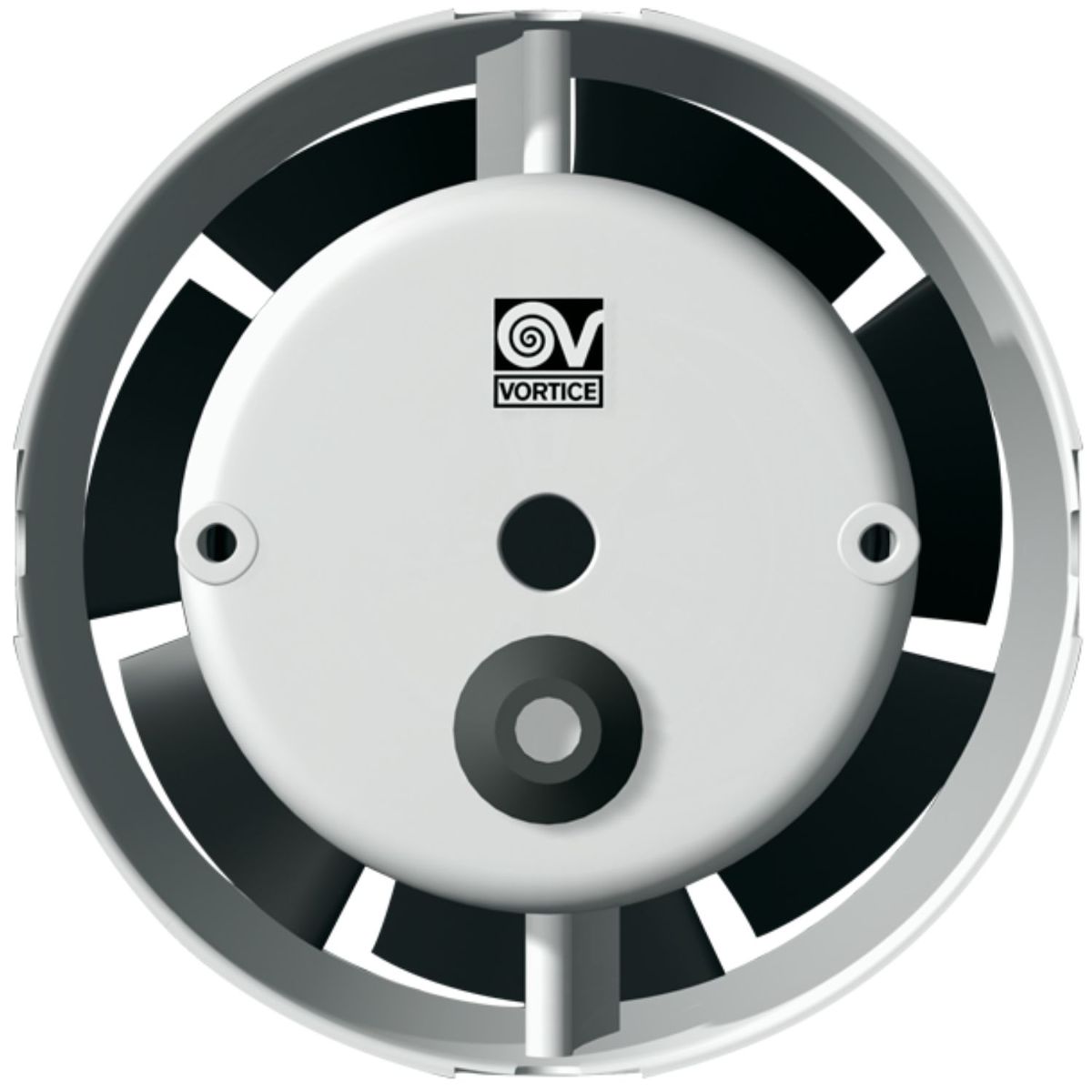

Axial extractor fan designed for installation inside ducts, partition walls or ceilings, making it particularly suitable for small and medium-sized residential and commercial environments, thanks to its compact design and small axial footprint, it can be easily inserted into limited spaces, making it ideal also for heat transfer between adjacent rooms.
Made of plastic resin resistant to aging caused by exposure to solar rays (UV resistant), it guarantees a long life over time, the motor is thermally protected, with shaft mounted on self-lubricating bushing supports, and combined with a helical impeller in thermoplastic material with wing profile blades, ensuring high performance with a low noise level.
The extractor offers a maximum flow rate of 65 m³/h and can be controlled in speed using Vortice regulators, allowing performance to be adapted to the specific needs of the environment.
Datasheet
• Nominal duct diameter 90 mm
• Maximum flow rate 65 m³/h
• Maximum absorbed power 18 W
• Power supply voltage 220-240 V
• Rotation speed 2,450 RPM
• Sound pressure level at 3 m 38 dB(A)
• IPX4 protection rating
• Insulation class II
• Helical impeller in thermoplastic material with wing profile blades
• UV-resistant plastic resin material
• In-line installation inside ducts, partition walls or ceilings
• Speed controllable by regulators
