Description

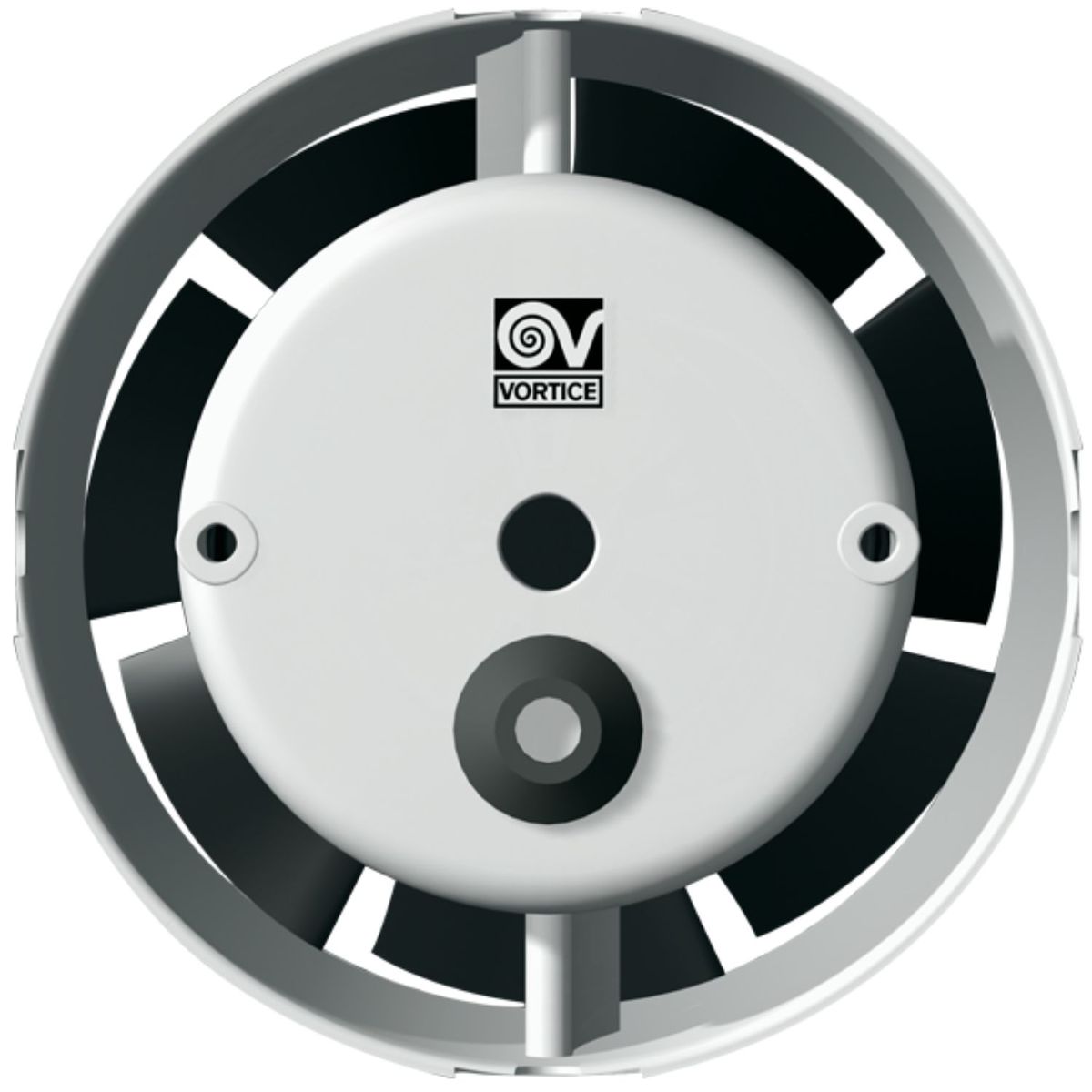

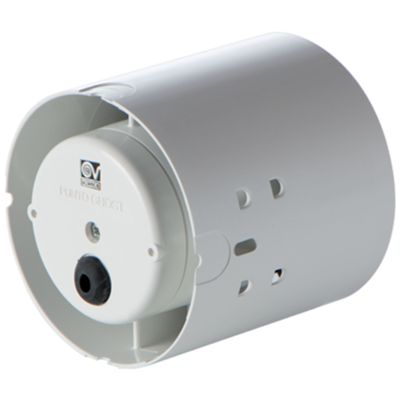

Axial extractor fan designed for installation inside ducts, partition walls or ceilings, making it particularly suitable for small and medium-sized residential and commercial environments, thanks to its compact design and small axial footprint, it can be easily inserted into limited spaces, making it ideal also for heat transfer between adjacent rooms.
Made of plastic resin resistant to aging caused by exposure to solar rays (UV resistant), it guarantees a long life over time, while the motor is thermally protected, with shaft mounted on self-lubricating bushing supports, and combined with a helical impeller in thermoplastic material with wing profile blades, ensuring high performance with a low noise level.
The extractor is equipped with an electronic timer that allows automatic switch-off after an interval that can be set during installation, between 3 and 20 minutes (default setting at 3 minutes).
The operating speed can be controlled via Vortice regulators, allowing performance to be adapted to the specific needs of the environment, the protection rating is IPX4, making it suitable for humid environments and installation is facilitated thanks to the compact design and technical specifications optimised for different space configurations.
Datasheet
• Nominal diameter 90 mm
• Maximum flow rate 65 m³/h
• Maximum absorbed power 18 W
• Power supply voltage 220-240 V
• Rotation speed 2,450 RPM
• Sound pressure level at 3 m 38 dB(A)
• Helical impeller in thermoplastic material with wing profile blades
• Electronic timer for automatic switch-off settable between 3 and 20 minutes
• Speed controllable by regulators
• UV-resistant plastic resin material
• Installation inside ducts, partition walls or ceilings
• IPX4 protection rating
• Insulation class II
