Description

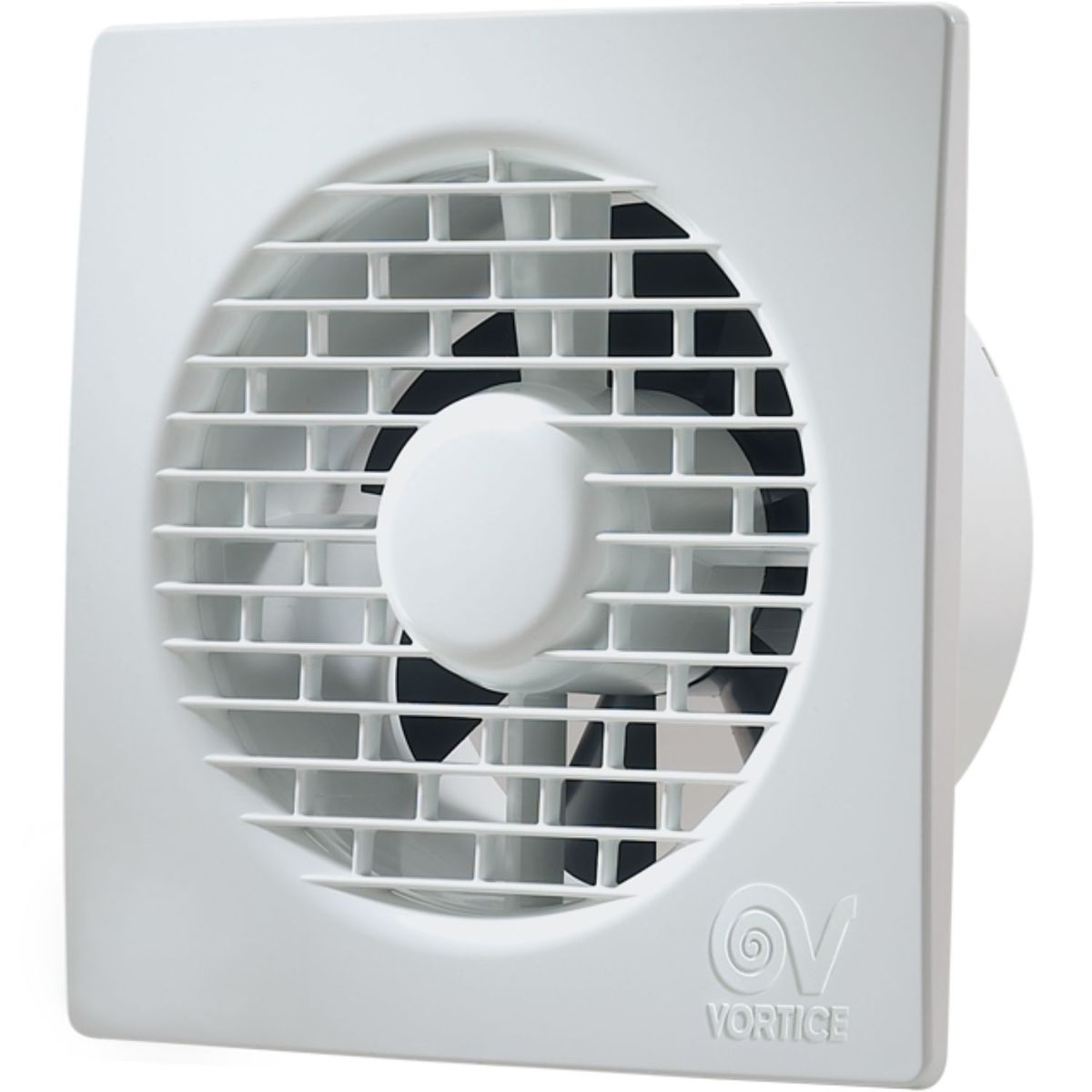

Slim profile wall mounted helical extractor fan, designed for installation in small residential and commercial environments, made of plastic resin resistant to aging caused by exposure to solar rays (UV resistant), guarantees durability and maintains its aesthetics over time.
The thermally protected motor is mounted on self-lubricating bushing supports and coupled to a thermoplastic helical impeller with wing profile blades, ensuring high performance with minimal noise levels.
The extractor offers a maximum flow rate of 65 m³/h and is equipped with a non-return valve applied to the delivery mouth, ensuring effective ventilation without air return, the rotation speed is 2,500 rpm, with a sound pressure at 3 meters of 28.8 dB(A), ensuring silent operation.
Installation is made easy thanks to the compact design and technical specifications optimized to adapt to different space configurations.
Datasheet
• Nominal diameter 90 mm
• Maximum flow rate 65 m³/h
• Maximum absorbed power 14 W
• Power supply voltage 220-240 V
• Rotation speed 2,500 RPM
• Sound pressure level at 3 m 28.8 dB(A)
• IPX4 protection rating
• Insulation class II
• UV-resistant plastic resin material
• Wall, ceiling or false ceiling installation
• Helical impeller in thermoplastic material with wing profile blades
• Non-return valve applied to the delivery port
