Description

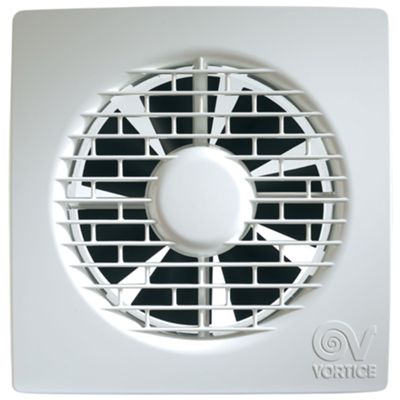

Helical extractor fan designed for installation on walls, ceilings or false ceilings, suitable for small and medium-sized residential and commercial environments, made of plastic resin resistant to aging caused by exposure to solar rays (UV resistant), guarantees a long life over time.
The motor is thermally protected, with a shaft mounted on self-lubricating bushing supports, and combined with a helical impeller in thermoplastic material with wing profile blades, ensuring high performance with a low noise level.
The extractor fan is equipped with an electronic timer that allows automatic switch-off after an interval that can be set during installation, between 3 and 20 minutes (default setting at 3 minutes). Furthermore, it is equipped with a non-return valve applied to the delivery mouth, which prevents the return of the aspirated air.
The operating speed can be controlled via a Vortice regulator, allowing you to adapt the performance to the specific needs of the environment, the protection rating is IPX4, making it suitable for humid environments.
Installation is made easy thanks to the compact design and technical specifications optimized for different space configurations.
Datasheet
• Nominal duct diameter 120 mm
• Maximum flow rate 175 m³/h
• Maximum absorbed power 20 W
• Power supply voltage 220-240 V
• Rotation speed 2,150 RPM
• Sound pressure level at 3 m 34.4 dB(A)
• IPX4 protection rating
• Insulation class II
• UV-resistant plastic resin material
• Wall, ceiling or false ceiling installation
• Helical impeller in thermoplastic material with wing profile blades
• Electronic timer for automatic switch-off settable between 3 and 20 minutes
• Non-return valve applied to the delivery port
• Speed controllable by regulator
