Description

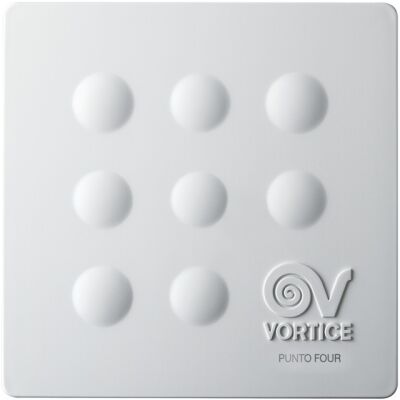

Helical extractor fan designed for installation on the wall, ceiling or false ceiling, perfect for air exchange in small residential and commercial premises, made of ABS plastic resin resistant to aging caused by exposure to solar rays (UV resistant), ensures durability and maintains its aesthetics over time.
The motor, protected against thermal overloads, is mounted on self-lubricating bushing supports and coupled to a helical impeller in thermoplastic material with wing profile blades, ensuring efficient and silent operation.
The extractor offers a maximum flow rate of 65 m³/h and can be controlled in speed via a Vortice regulator, allowing performance to be adapted to the specific needs of the environment.
Datasheet
• Nominal diameter 90 mm
• Maximum flow rate 65 m³/h
• Maximum absorbed power 14 W
• Power supply voltage 220-240 V
• Rotation speed 2,540 RPM
• Sound pressure level at 3 m 29.6 dB(A)
• IPX4 protection rating
• Insulation class II
• UV-resistant ABS plastic resin material
• Wall, ceiling or false ceiling installation
• Helical impeller in thermoplastic material with wing profile blades
• Speed adjustable via regulator
