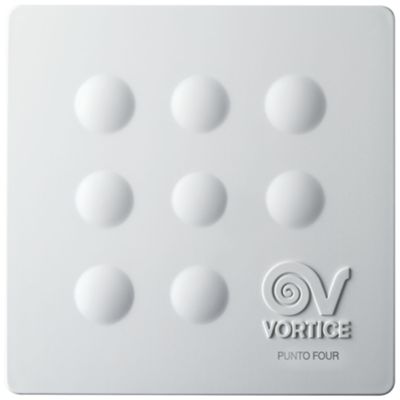

Description
Helical extractor fan designed for installation on the wall, ceiling or false ceiling, perfect for air exchange in medium-sized residential and commercial premises, made of plastic resin resistant to aging caused by exposure to solar rays (UV resistant), ensures durability and maintains its aesthetics over time.
The motor, protected against thermal overloads, is mounted on self-lubricating bushing supports and coupled to a helical impeller in thermoplastic material with wing profile blades, ensuring efficient and silent operation.
The vacuum cleaner is equipped with an electronic timer that allows automatic switch-off after a preset time interval, adjustable between 3 and 20 minutes (default setting of 3 minutes).
The speed can be controlled via a Vortice regulator, allowing performance to be adapted to the specific needs of the environment.
Datasheet
• Nominal diameter 120 mm
• Maximum flow rate 175 m³/h
• Maximum absorbed power 20 W
• Power supply voltage 220-240 V
• Rotation speed 2,240 RPM
• Sound pressure level at 3 m 39.1 dB(A)
• IPX4 protection rating
• Insulation class II
• UV-resistant plastic resin material
• Wall, ceiling or false ceiling installation
• Helical impeller in thermoplastic material with wing profile blades
• Electronic timer for automatic switch-off settable between 3 and 20 minutes
• Speed adjustable via regulator
