Description

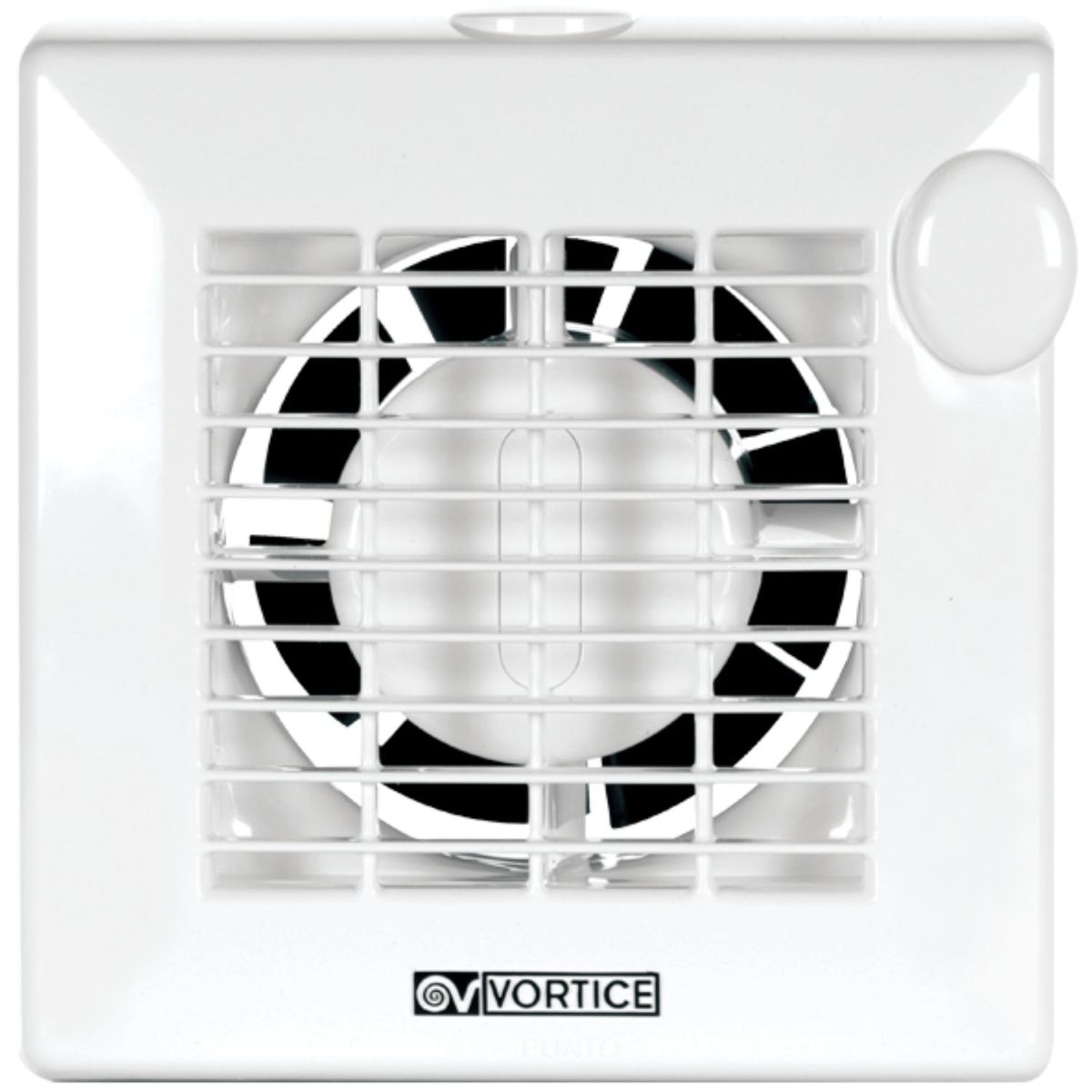

Helical extractor fan designed for installation on walls or glass, ideal for the ventilation of small residential environments such as bathrooms and kitchens, its structure is made of plastic resin resistant to aging caused by exposure to UV rays, ensuring durability over time.
The motor is thermally protected and mounts a shaft on self-lubricating bushing supports, combined with a helical impeller in thermoplastic material with wing profile blades, ensuring efficient and silent operation.
With a maximum flow rate of 70 m³/h, it offers effective extraction of humidity and odors, the device can be controlled in speed using a Vortex regulator (not included), allowing you to adapt the performance to specific needs.
Datasheet
• Wall or glass helical extractor fan
• Power supply voltage 220–240 V
• Max absorbed power 18 W
• Maximum flow rate 70 m³/h
• Nominal diameter 90 mm
• Rotation speed 2500 RPM
• IPX4 protection rating
• Insulation class II
• Maximum ambient temperature for continuous operation 50°C
• UV-resistant plastic resin material
• Speed control via Vortice regulator (not included)
• Wall or glass installation
