Description

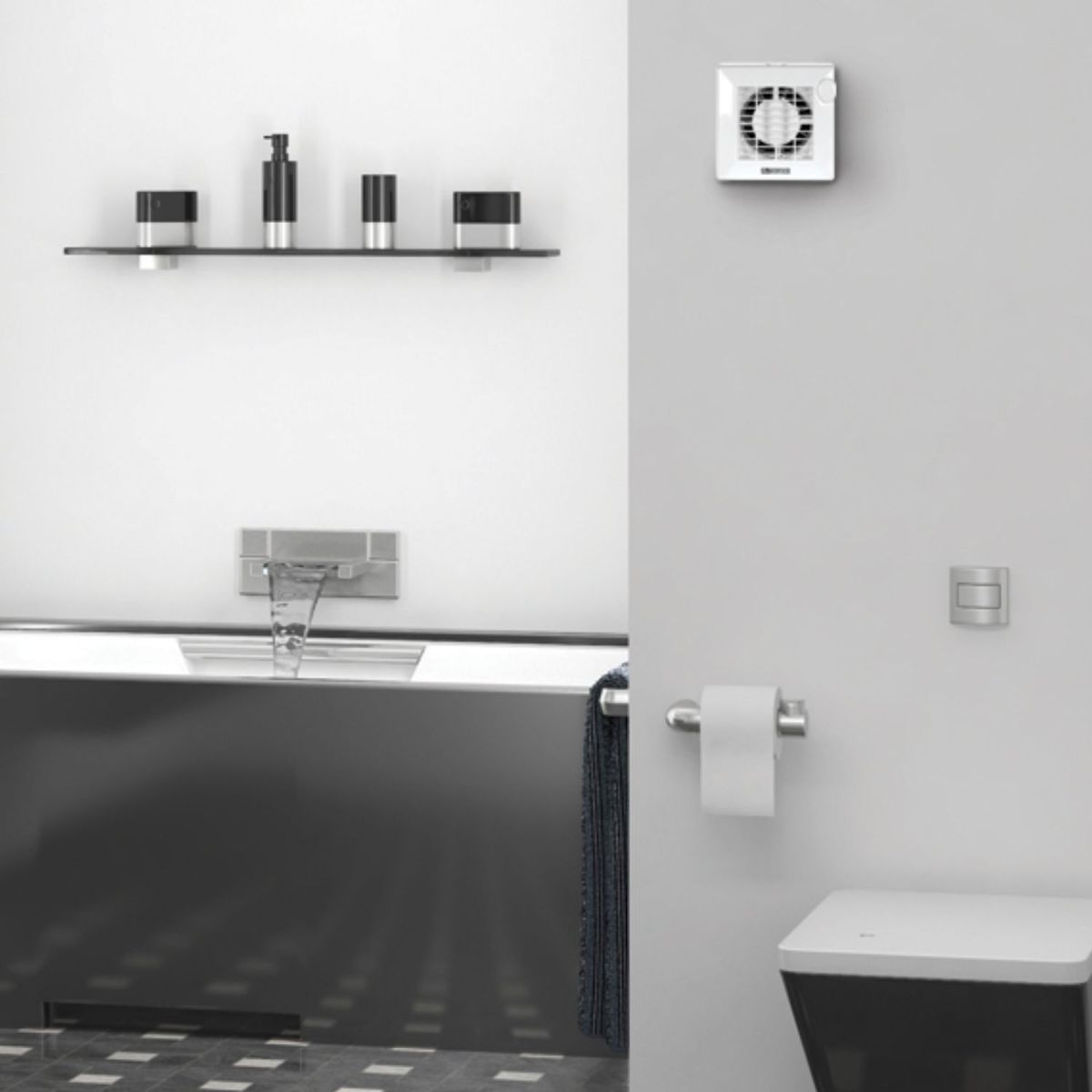

Versatile helical extractor, designed for installation on walls or windows, made of UV-resistant plastic resin, guarantees durability and maintains its aesthetics over time.
The motor, protected against thermal overloads, is mounted on supports with self-lubricating bushings and coupled to a helical impeller in thermoplastic material with wing profile blades, ensuring high performance with a low noise level.
The extractor is equipped with an IPX4 protection rating, making it suitable for humid environments, the speed can be adjusted via a special Vortice regulator, offering flexibility in use.
Datasheet
• Nominal diameter 100 mm
• Maximum flow rate 90 m³/h
• Maximum absorbed power 18 W
• Power supply voltage 220-240 V
• Rotation speed 2,300 RPM
• Sound pressure level at 3 m 37.5 dB(A)
• IPX4 protection rating
• Insulation class II
• UV-resistant plastic resin material
• Wall or window installation
