Description

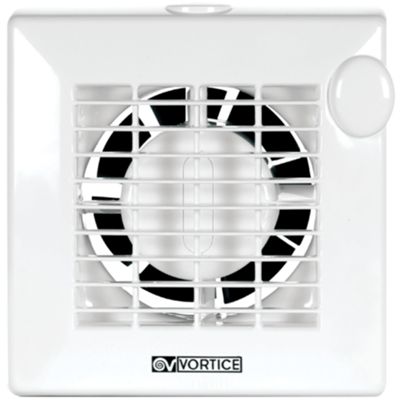

Helical extractor fan designed for installation on walls or glass, ideal for ventilation of small residential and commercial environments such as bathrooms and kitchens, its structure is made of plastic resin resistant to aging caused by exposure to UV rays, ensuring durability over time.
The motor is thermally protected and mounts a shaft on self-lubricating bushing supports, combined with a helical impeller in thermoplastic material with wing profile blades, ensuring efficient and silent operation.
With a maximum flow rate of 90 m³/h, it offers effective extraction of humidity and odors, the device is equipped with an electronic timer for automatic switch-off, which can be set during installation in the range 3–20 minutes (default setting 3 minutes), allowing performance to be adapted to specific needs.
Datasheet
• Wall or glass helical extractor fan
• Power supply voltage 220–240 V
• Max absorbed power 18 W
• Maximum flow rate 90 m³/h
• Nominal diameter 100 mm
• Rotation speed 2300 RPM
• Sound pressure at 3 m 37.5 dB(A)
• IPX4 protection rating
• Insulation class II
• Maximum ambient temperature for continuous operation 50°C
• UV-resistant plastic resin material
• Electronic timer Adjustable between 3 and 20 minutes (default 3 minutes)
• Wall or glass installation
