Description
Suitable for intermittent or continuous ventilation of small or medium-sized domestic or commercial premises. Suitable for installations where the use of SELV devices is required. Motor holder and grille made of anti-UV treated ABS with high air flow, low noise level and energy consumption thanks to the fan and wing profile motor holder. The maximum flow rate is 90 m3/h and is equipped with an automatic system for opening and closing the front grille flaps. IMQ and IMQ PERFORMANCE certified safety and performance. Insulation class II
Datasheet

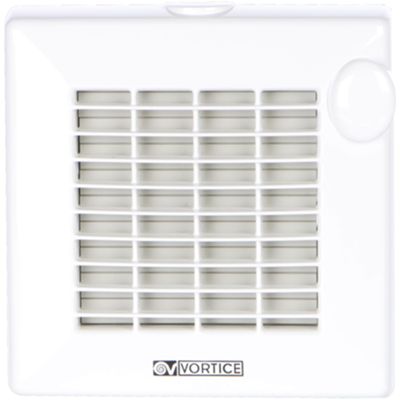

• Wall or glass helical extractor fan
• Supply voltage 12 V
• Max absorbed power 18 W
• Maximum flow rate 90 m³/h
• Nominal diameter 100 mm
• Rotation speed 2300 RPM
• Sound pressure at 3 m 37.5 dB(A)
• IPX4 protection rating
• Insulation class II
• Maximum ambient temperature for continuous operation 50°C
• UV-resistant plastic resin material
• Automatic flap opening/closing system
• Wall or glass installation
