Description

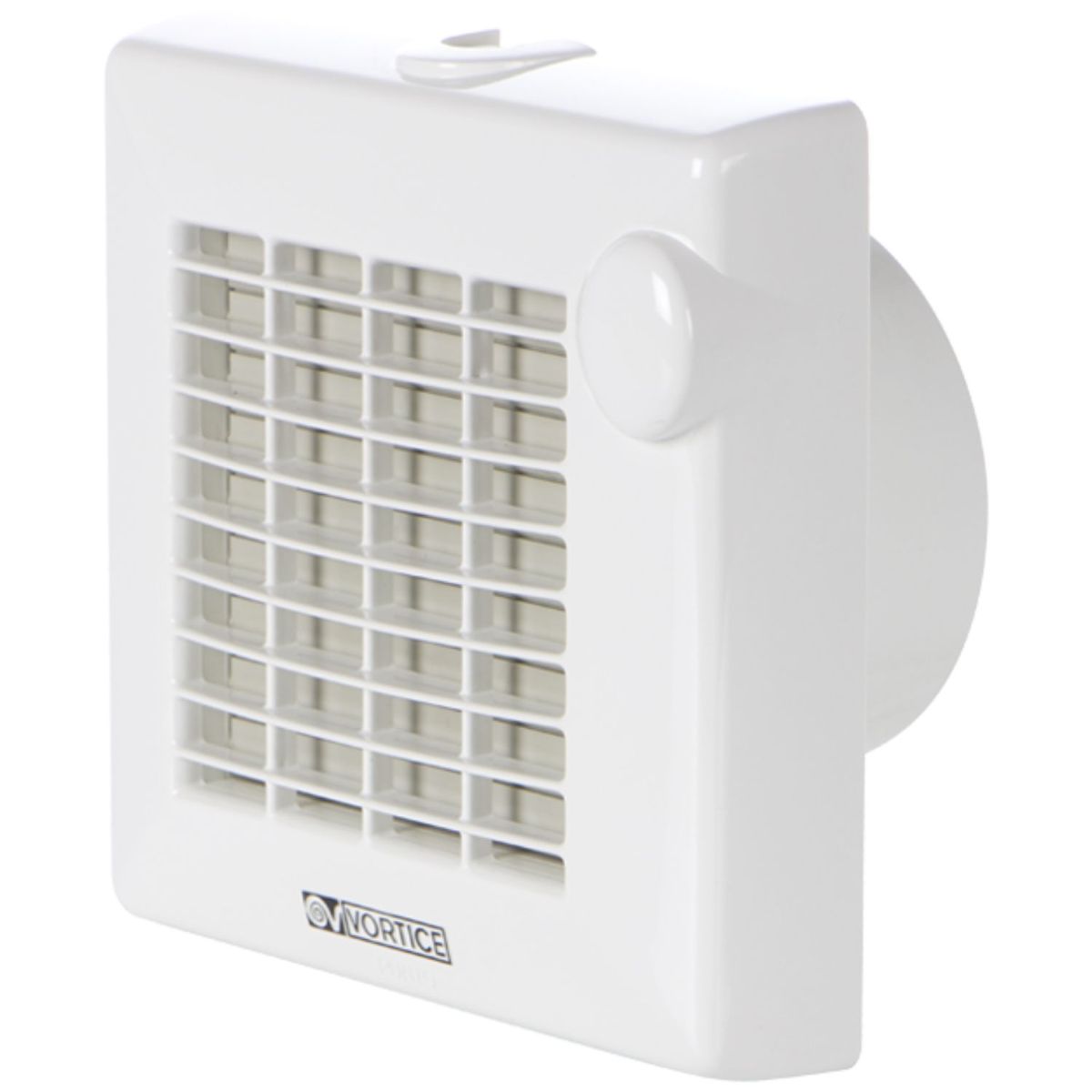

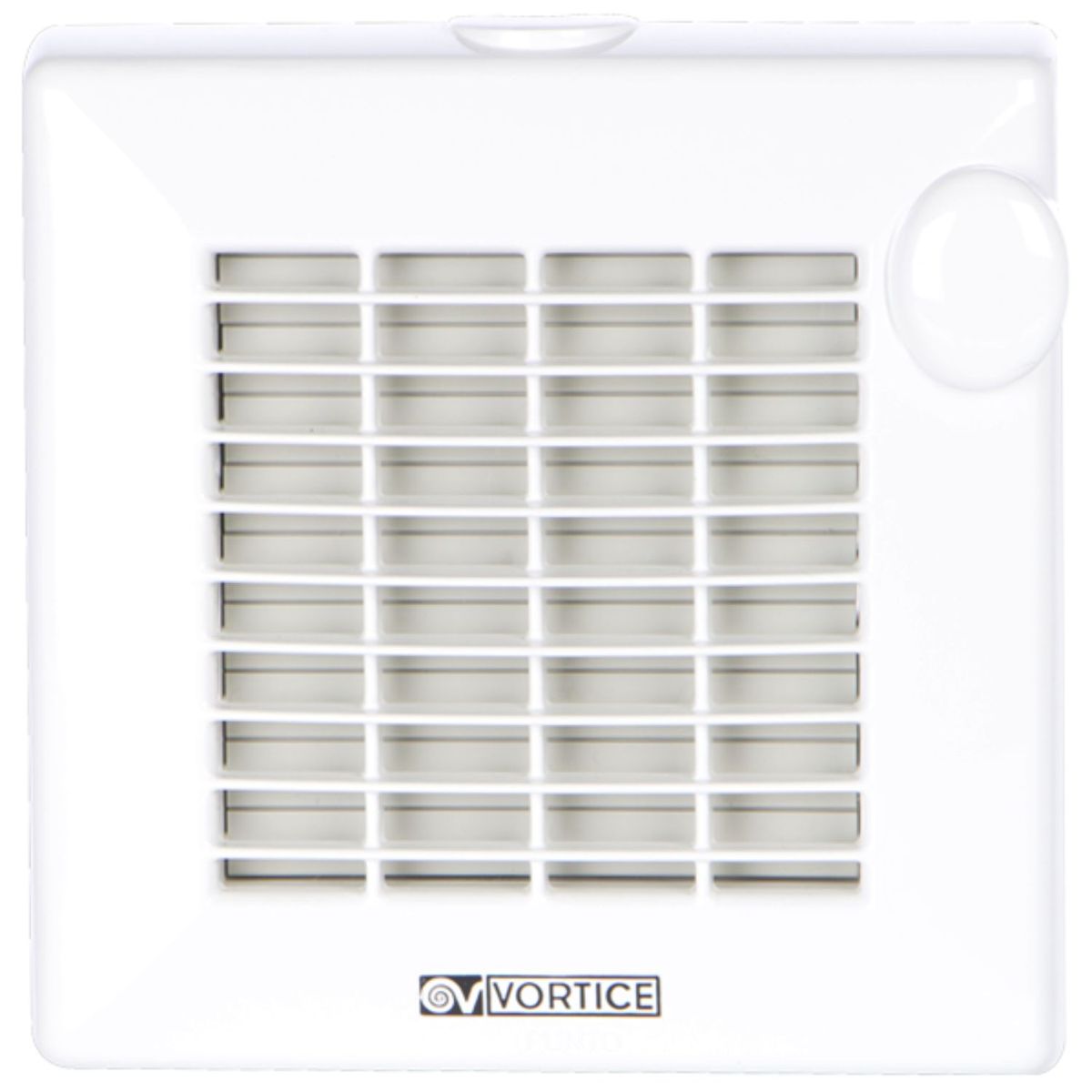

Timed wall mounted helical extractor fan made of UV-resistant plastic resin, preventing aging caused by sun exposure.
The motor, protected against thermal overloads, is mounted on self-lubricating bushing supports and coupled to a helical impeller in thermoplastic material with wing profile blades, ensuring efficient and silent operation.
The extractor is equipped with an electronic timer that allows automatic switch-off after an adjustable interval between 3 and 20 minutes (default setting of 3 minutes), furthermore, it has an automatic system for opening and closing the front grille flaps, improving aesthetics and preventing the entry of foreign bodies when the unit is inactive.
Datasheet
• Nominal diameter 100 mm
• Maximum flow rate 90 m³/h
• Maximum absorbed power 18 W
• Power supply voltage: 220-240 V
• Rotation speed 2300 RPM
• Sound pressure level at 3 m 37.5 dB(A)
• IPX4 protection rating
• Insulation class II
• Electronic timer with adjustable interval between 3 and 20 minutes
• Automatic opening and closing system of the front grill flaps
• UV-resistant plastic resin material
• Wall or glass installation
