Description

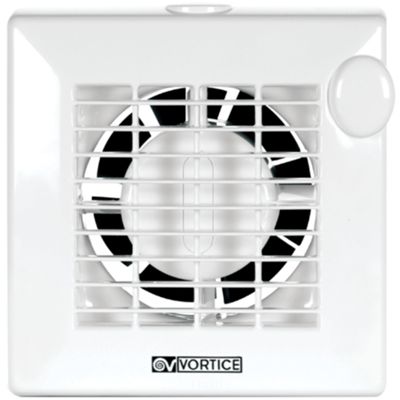

Helical extractor fan designed for installation on walls or windows, perfect for air exchange in medium-small sized residential and commercial premises, it is made of plastic resin resistant to aging caused by exposure to solar rays (UV resistant), ensures durability and maintains its aesthetics over time.
The motor, protected against thermal overloads, is mounted on self-lubricating bushing supports and coupled to a helical impeller in thermoplastic material with wing profile blades, ensuring efficient and silent operation.
The extractor offers a maximum flow rate of 175 m³/h and can be controlled in speed using a Vortice regulator, allowing performance to be adapted to the specific needs of the environment.
Datasheet
• Nominal diameter 120 mm
• Maximum flow rate 175 m³/h
• Helical impeller in thermoplastic material with wing profile blades
• UV-resistant plastic resin material
• Wall or window installation
• Speed adjustable via regulator
• IPX4 protection rating
• Insulation class II
• Rotation speed 2,100 RPM
