Description

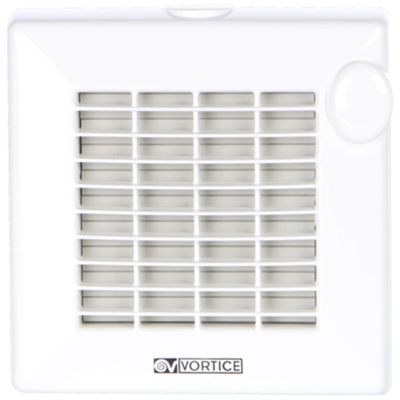

Automatic helical extractor fan designed for installation on walls or windows, ideal for medium-sized residential and commercial environments, it is made of plastic resin resistant to aging caused by exposure to solar rays (UV resistant), guarantees a long life and maintains its aesthetics over time.
The thermally protected motor is mounted on self-lubricating bushing supports and coupled to a thermoplastic helical impeller with wing profile blades, ensuring high performance with low noise levels.
The front grille features an automatic opening and closing flap system, which improves aesthetics and prevents the entry of foreign objects when the unit is inactive. The IPX4 protection rating makes it suitable for humid environments.
Datasheet
• Nominal diameter 120 mm
• Maximum flow rate 175 m³/h
• Maximum absorbed power 20 W
• Power supply voltage 220-240 V
• Rotation speed 2,100 RPM
• Sound pressure level at 3 m 39.5 dB(A)
• IPX4 protection rating
• Insulation class II
• UV-resistant plastic resin material
• Wall or window installation
• Front grille with automatic opening and closing system of the flaps
