Description

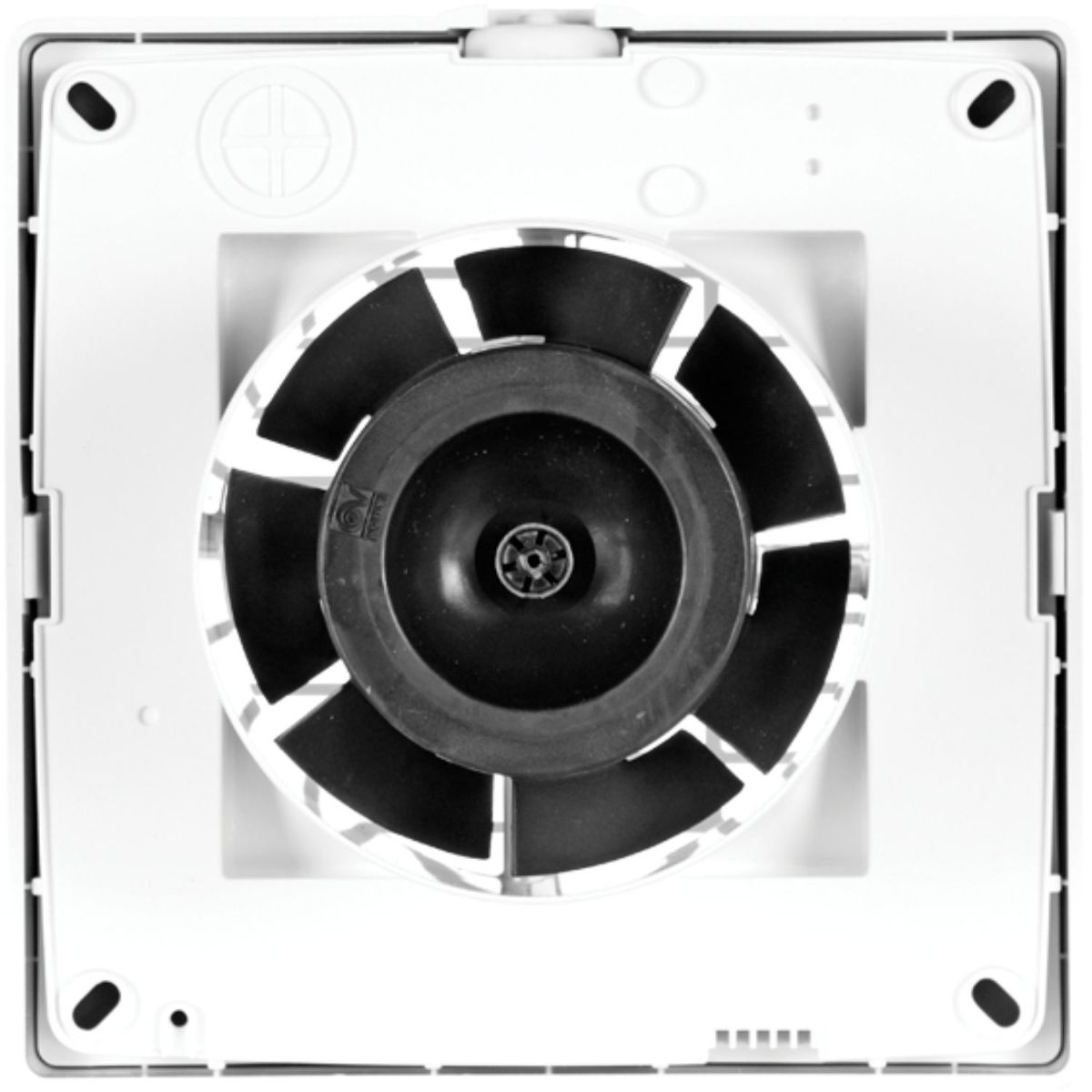

Helical extractor fan designed for installation on walls or windows, suitable for medium-sized residential and commercial environments, made of plastic resin resistant to aging caused by exposure to solar rays (UV resistant), ensures a long life while maintaining aesthetics over time.
The thermally protected motor is mounted on self-lubricating bushing supports and coupled to a thermoplastic helical impeller with wing profile blades, ensuring high performance with low noise levels.
The extractor offers a maximum flow rate of 335 m³/h and can be controlled in speed using a Vortice regulator, allowing performance to be adapted to the specific needs of the environment.
Datasheet
• Nominal duct diameter: 150 mm
• Maximum flow rate 335 m³/h
• Maximum absorbed power 20 W
• Power supply voltage 220-240 V
• Rotation speed 2,100 RPM
• Sound pressure level at 3 m 46 dB(A)
• IPX4 protection rating
• Insulation class II
• UV-resistant plastic resin material
• Wall or window installation
• Helical impeller in thermoplastic material with wing profile blades
• Speed adjustable via regulator
