Description
Helical extractor fan designed for installation on walls or windows, ideal for medium-sized residential and commercial environments, made of plastic resin resistant to aging caused by exposure to solar rays (UV resistant), guarantees a long life while maintaining its aesthetics over time.

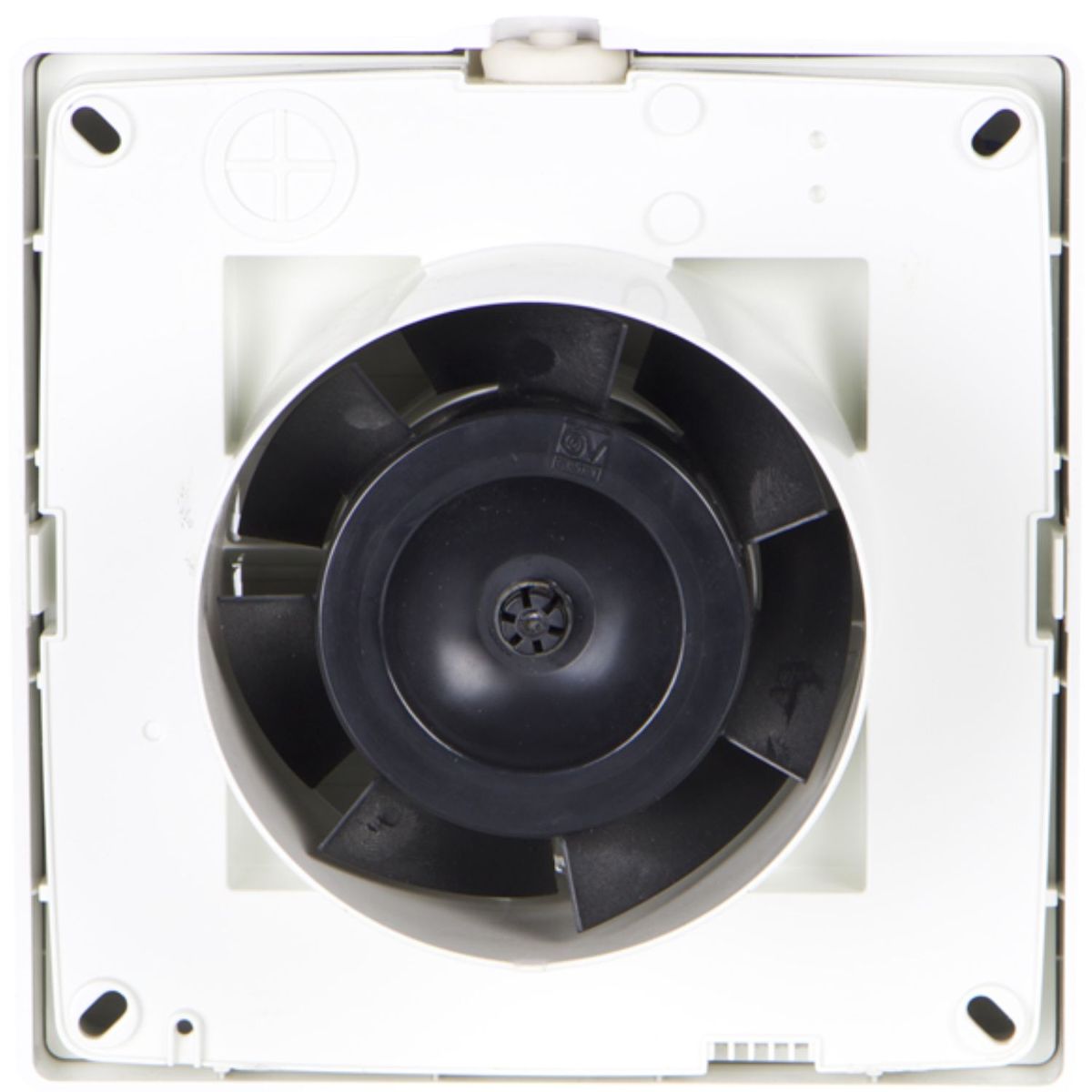

The thermally protected motor is mounted on self-lubricating bushing supports and coupled to a thermoplastic helical impeller with wing profile blades, ensuring high performance with low noise levels.

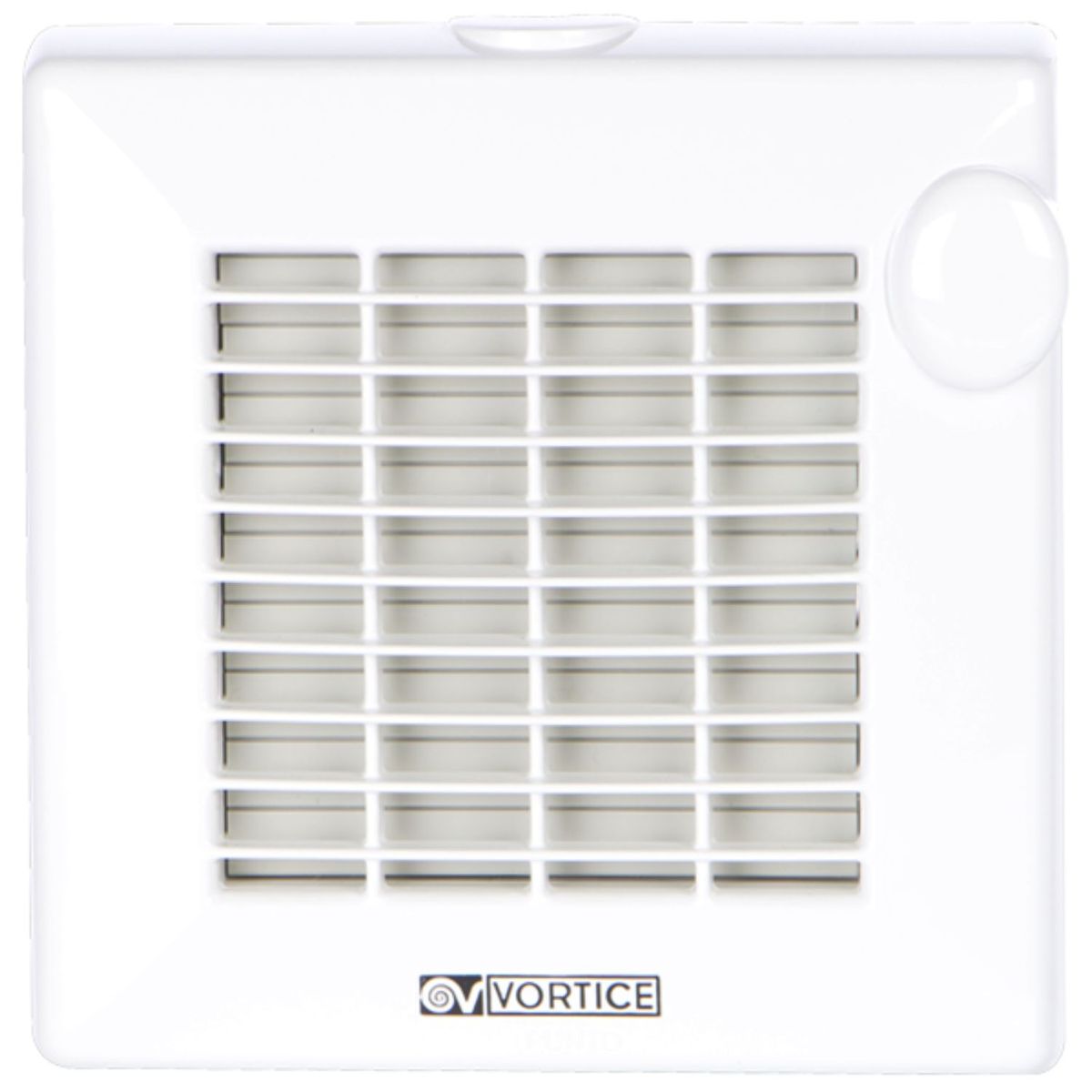

The front grille is equipped with an automatic opening and closing system of the flaps, which improves the aesthetics and prevents the entry of foreign bodies when the unit is inactive. Furthermore, the extractor is equipped with an electronic timer for the automatic switching off of the product after a pre-set time, which can be set during installation in the range 3'-20' (default setting 3').
Datasheet
• Nominal diameter 150 mm
• Maximum flow rate 335 m³/h
• Maximum absorbed power 29 W
• Power supply voltage 220-240 V
• Rotation speed 2,100 RPM
• Sound pressure level at 3 m 46 dB(A)
• IPX4 protection rating
• Insulation class II
• Helical impeller in thermoplastic material with wing profile blades
• Front grille with automatic opening and closing system of the flaps
• Electronic timer for automatic switch-off settable between 3 and 20 minutes
• UV-resistant plastic resin material
• Wall or window installation
