Description

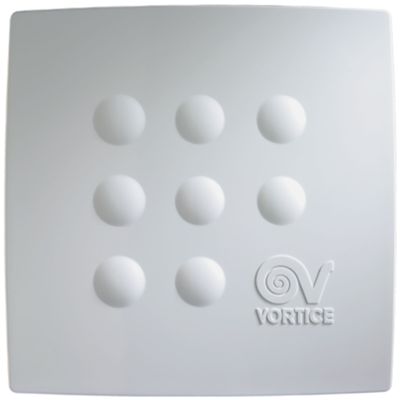

Centrifugal extractor designed for wall or ceiling installation, suitable for the ventilation of small residential and commercial premises that require exhaust channeling, its structure is made of white ABS plastic resin, ensuring resistance and durability.
The 2-speed induction motor with starting capacitor is coupled to a forward-curved centrifugal impeller and equipped with a thermal protection fuse and self-lubricating bushings, ensuring reliability and silence.
The extractor is equipped with an electronic timer that allows automatic switch-off after a time interval that can be set between 3 and 20 minutes (default setting of 3 minutes), offering greater convenience and energy savings.
Datasheet
• Nominal diameter 80 mm
• Maximum flow rate 85 m³/h
• Maximum power consumption: 27 W
• Maximum speed 1,580 RPM
• Minimum speed 1,150 RPM
• Sound pressure level at 3 m at maximum speed 37 dB(A)
• Sound pressure level at 3 m at minimum speed 28.7 dB(A)
• IPX4 protection rating
• Insulation class II
• Material: White ABS plastic resin
• Wall or ceiling installation
• 2-speed motor
• Electronic timer for automatic switch-off settable between 3 and 20 minutes (default 3 minutes)
