Description

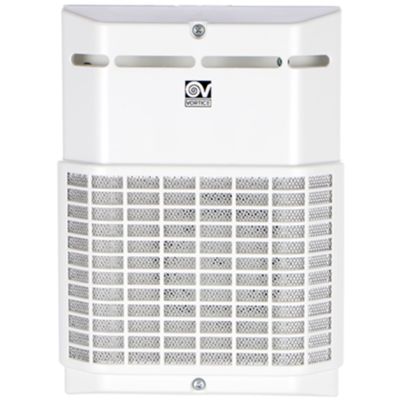

Centrifugal extractor designed to ensure effective ventilation in residential environments, built in polystyrene (PS) resistant to aging due to exposure to the sun ("UV resistant"), has a nominal diameter of 100 mm.
The motor, with capacitor and thermal protection, is mounted in a closed type motor holder to protect it from dust and humidity, the centrifugal impeller ensures a maximum air flow rate of 90 m³/h, also ideal for installations with long ducts.
Equipped with an electronic timer for automatic switch-off, the operating time can be set, during installation, in the range from 3 to 20 minutes (default setting 3 minutes).
The protective grille and the multilayer aluminium mesh filter on the front are easily removable and washable, furthermore, the butterfly closure prevents unwanted air from re-entering when the appliance is switched off.
Datasheet
Technical specifications:
• Exhaust diameter 9.7 cm
• Power consumption 20W
• Max flow rate (l/s) 25
• Max flow rate (m³/h) 90
• Max pressure (mmH2O) 11.5
Certifications:
• THERE IS
