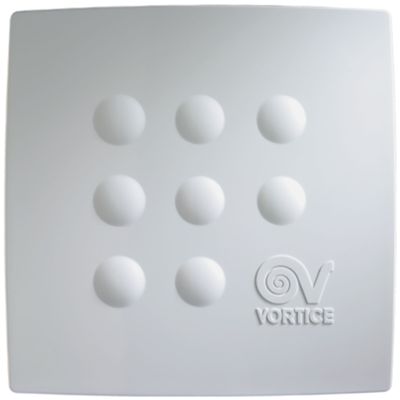

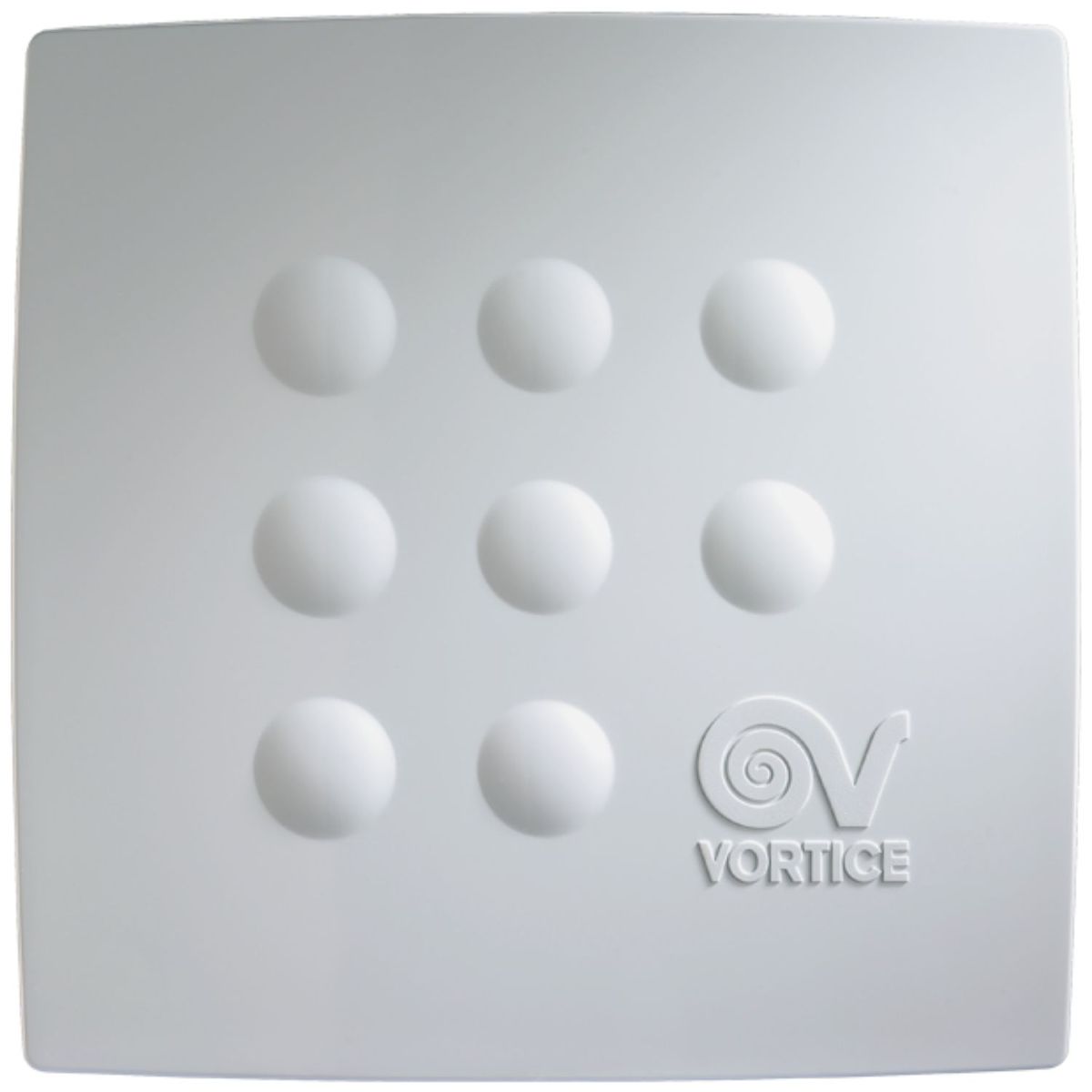

Vortice 11944 - centrifugal extractor fan MEDIUM FRAMEWORK

Vortice 11944 - centrifugal extractor fan MEDIUM FRAMEWORK

SKU: VOR0000011944
Barcode: 8010300119441
Brand: Vortice
Centrifugal duct extractor with a nominal diameter of 100 mm, designed for the ventilation of residential and commercial environments
€195.09pcs
⏰ Order now and receive it: between and
Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

Centrifugal duct extractor, ideal for wall or ceiling installation in residential and commercial environments, thanks to its white ABS plastic resin construction it guarantees resistance and durability over time.

The 2-speed induction motor with starting capacitor is coupled to a forward-curved centrifugal impeller and is equipped with a thermal protection fuse and self-lubricating bushings, ensuring reliable and silent performance.

The maximum flow rate reaches 120 m³/h at maximum speed, while at minimum speed it is 70 m³/h.

The device can be controlled in speed by means of a Vortice regulator, allowing the performance to be adapted to the specific needs of the environment.

Datasheet

• Duct diameter 100mm

• Voltage 230V

• Max flow rate 120 m³/h

• Exhaust diameter 97mm

• Noise level 36.7 dB

Properties

Cerifications:
Electrical expert
C E
