Description

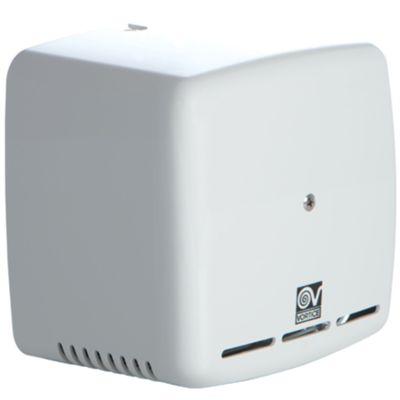

Centrifugal extractor designed for installation in ducts, ideal for continuous or intensive ventilation of small and medium-sized domestic environments, even humid ones such as bathrooms and kitchens. Made of UV-resistant plastic, it guarantees durability and optimal performance over time.
The 2-speed motor, equipped with thermal protection and ball bearing supports, offers a maximum air flow of 70 m³/h.
The integrated non-return valve at the outlet prevents air from flowing back, while the IPX4 protection rating ensures resistance to splashes of water and the speed can be adjusted via the Vortice speed controller.
Datasheet
• Nominal diameter 100 mm
• Duct installation, suitable for residential environments
• UV-resistant plastic structure material
• 2-speed motor with thermal protection and shaft on ball bearing supports
• Maximum air flow 70 m³/h
• Sound pressure at 3 m 40 dB(A)
• IPX4 protection rating
• Insulation class II
• Voltage 230 V
• Maximum absorbed power 18 W
• Dimensions (L x W x H) 156 x 97 x 60 mm
