Description

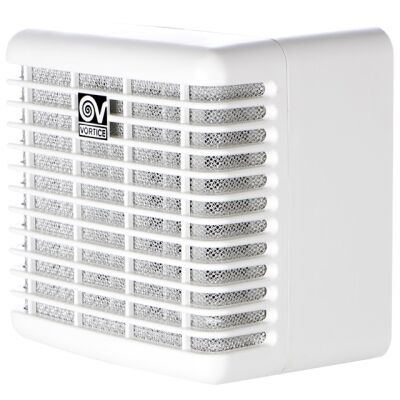

Centrifugal duct extractor, ideal for wall or ceiling installation in medium and large sized residential and commercial environments, even humid ones, made of UV-resistant plastic, prevents aging caused by exposure to sunlight.
The 2-speed motor, mounted on ball supports, is coupled to a forward-curved centrifugal impeller, ensuring efficient and silent operation, the air flow varies from a minimum of 55 m³/h to a maximum of 110 m³/h.
The unit is equipped with a double motor-fan casing, anti-vibration mounts and a non-return damper, ensuring extremely quiet operation, includes a removable and washable metal filter (also in the dishwasher) and a silicone membrane seal designed to prevent the backflow of air when the appliance is off.
The outlet is vertical, with a supplied nozzle that can be oriented horizontally using a special diverter. The outlet is also equipped with a non-return valve and the speed can be controlled using a Vortice regulator.
Datasheet
• Nominal diameter 100 mm
• Minimum air flow 55 m³/h
• Maximum air flow 110 m³/h
• Power absorbed at maximum speed 24 W
• Minimum rotation speed 925 RPM
• Maximum rotation speed 1760 RPM
• Sound pressure level at 3 m at minimum speed 30 dB(A)
• Sound pressure level at 3 m at maximum speed 41 dB(A)
• IPX4 protection rating
• Insulation class II
• UV-resistant plastic material
• Wall or ceiling installation
• 2-speed motor with ball bearings
• Removable and dishwasher-safe metal filter
• Horizontally orientable vertical outlet with diverter
• Equipped with a non-return valve
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Package contents 1 Vortice VORT PRESS 110 LL centrifugal vacuum cleaner
