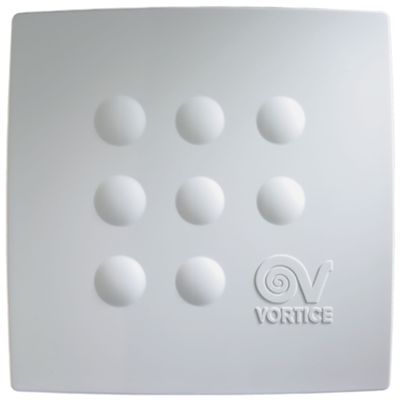

Centrifugal duct extractor QUADRO SUPER TIMER HCS
Description
Suitable for intermittently ventilating small, medium-large domestic or commercial premises.
2-speed motor and non-return valve to prevent air from returning when the appliance is off.
Particularly low noise levels and washable filter for easy maintenance.
Insulation class II.
Including Timer and Humidistat.
Datasheet
• Type Centrifugal duct extractor
• Power supply voltage 220–240 V
• Max absorbed power 105 W
• Nominal diameter 100 mm
• Max air flow 280 m³/h
• Sound pressure level at 3 m 48.6 dB(A)
• IPX4 protection rating
• Insulation class II
• Dimensions (H x W x D) 290 x 290 x 144 mm
• Material: White ABS plastic resin
• Relative humidity sensor with 4 selectable thresholds, 60%, 70%, 80%, 90%
• Electronic timer adjustable from 3 to 20 minutes
Properties
Cerifications:
