Description

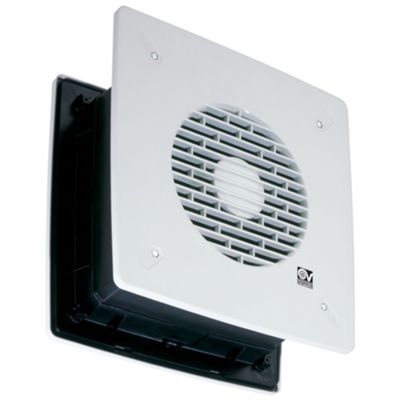

Helical extractor fan designed for recessed wall installation, ideal for the ventilation of residential and commercial environments, its structure is made of ABS plastic resin resistant to aging caused by exposure to UV rays, ensuring durability over time.
The motor is thermally protected and mounts a shaft on ball bearing supports (Long Life), combined with a helical impeller in thermoplastic material with wing profile blades, ensuring efficient and silent operation.
With a maximum flow rate of 1750 m³/h in extraction and 1000 m³/h in supply, it offers effective ventilation. The device is equipped with an automatic damper that prevents the entry of cold air and bad odors when the appliance is off.
Datasheet
• Type Built-in helical extractor fan
• Power supply voltage 220–240 V
• Max power consumption 75 W (90 W at 60 Hz)
• Maximum extraction flow rate 1750 m³/h
• Maximum flow rate in input 1000 m³/h
• Nominal diameter 30 cm
• Extraction rotation speed 1230 RPM
• Input rotation speed 1310 RPM
• Sound pressure at 3 m 53.5 dB(A)
• IPX4 protection rating
• Insulation class II
• Maximum ambient temperature for continuous operation 50°C
• UV-resistant ABS plastic resin material
• Automatic shutter
• Reversibility function (input or extraction)
• Flush-mounted wall installation
