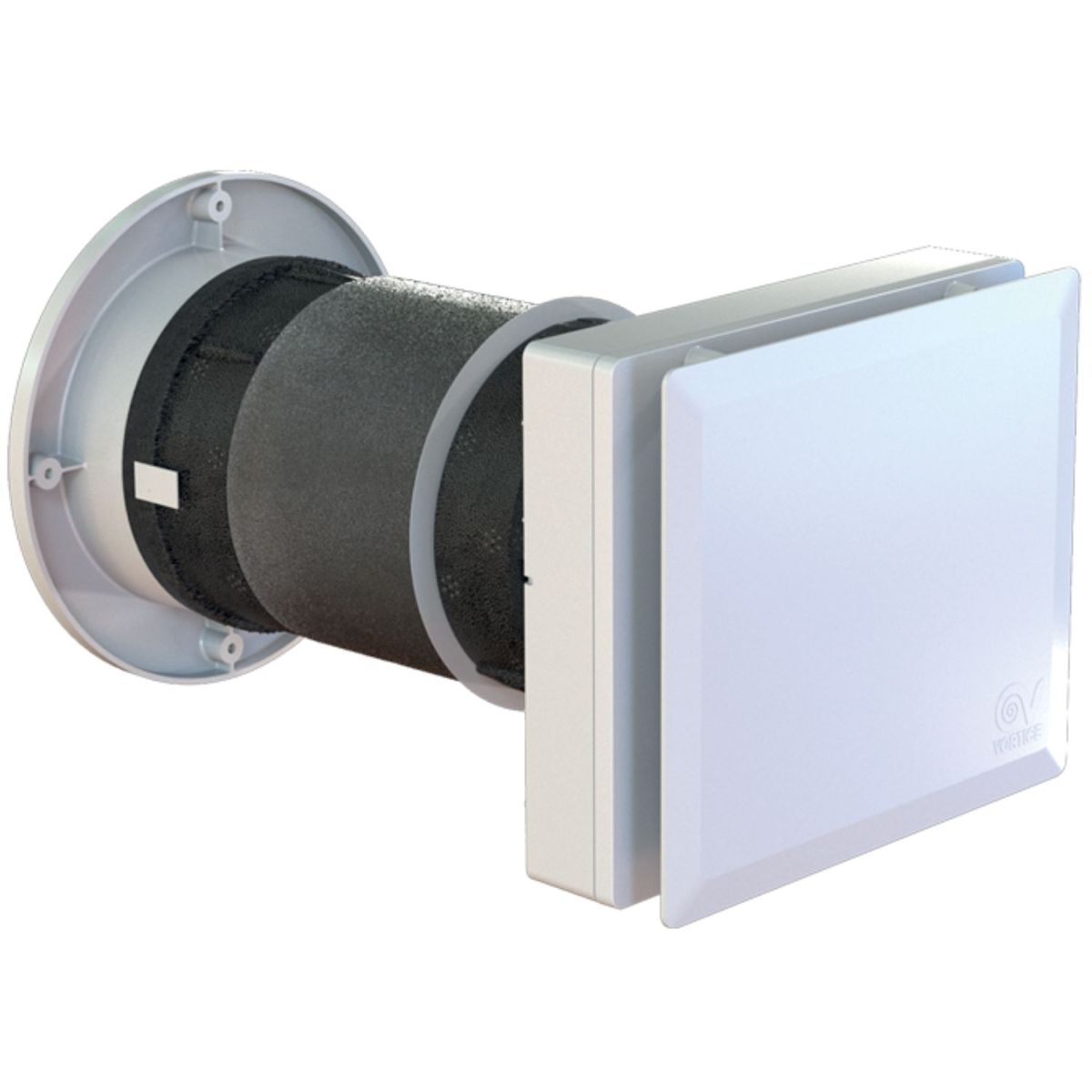

Vortice 12432 - VORT HRW 60 MONO EVO HCS Wi-Fi recuperator

Vortice 12432 - VORT HRW 60 MONO EVO HCS Wi-Fi recuperator

SKU: VOR0000012432
Brand: Vortice
Decentralized wall-mounted heat recovery unit with a diameter of 160 mm, equipped with an integrated humidity sensor, Wi-Fi module for communication between the unit and the remote control
€351.36pcs
⏰ Order now and receive it: between and
Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

The VORT HRW 60 MONO EVO HCS WiFi is a decentralized controlled mechanical ventilation (CMV) unit designed to improve air quality in residential and commercial environments. Thanks to its compact design, it can be easily installed on the wall via a 160 mm hole, making it suitable for both new buildings and renovations.

The hexagonal cell ceramic heat exchanger allows a heat recovery efficiency of up to 90% at minimum air flow, the high efficiency EC fan motor offers five operating speeds, allowing to balance performance and energy consumption.

The device is equipped with a built-in relative humidity sensor that automatically adjusts ventilation based on humidity levels, helping to prevent the formation of mold and condensation, the built-in Wi-Fi module allows communication between multiple installed units, creating a local mesh network for coordinated and balanced operation of the system.

The included one-way remote control allows you to set parameters and view useful information on product operation.

The shock-proof and UV-resistant plastic resin structure guarantees durability and resistance over time, furthermore, the external rubber grille with insect-proof net protects the unit from external elements.

Datasheet

• Decentralized wall-mounted heat recovery unit

• Wall installation, 160 mm hole

• Shockproof and anti-UV plastic resin structure

• Hexagonal cell ceramic heat exchanger

• Heat recovery efficiency Up to 90% at minimum air flow

• High efficiency EC fan motor

• Operating speed 5 levels selectable

• Heat recovery, extraction only, injection only

• On-board controls and one-way remote control

• Built-in humidity sensor, automatically adjusts ventilation

• Integrated Wi-Fi module for communication between units (mesh network)

• Filtration Two filters, ISO Coarse 65% and dust pre-filter

• External rubber grille with insect net

• Dimensions (AxBxCxD) 23.1 x 20 x 7.3 x 28.3 mm

• Insulation class II

• Power supply 230 V

• Maximum absorbed power 4 W

• Energy efficiency class A+

• Application in residential and commercial environments, new construction or renovation

Properties

Cerifications:
Electrical expert
C E
