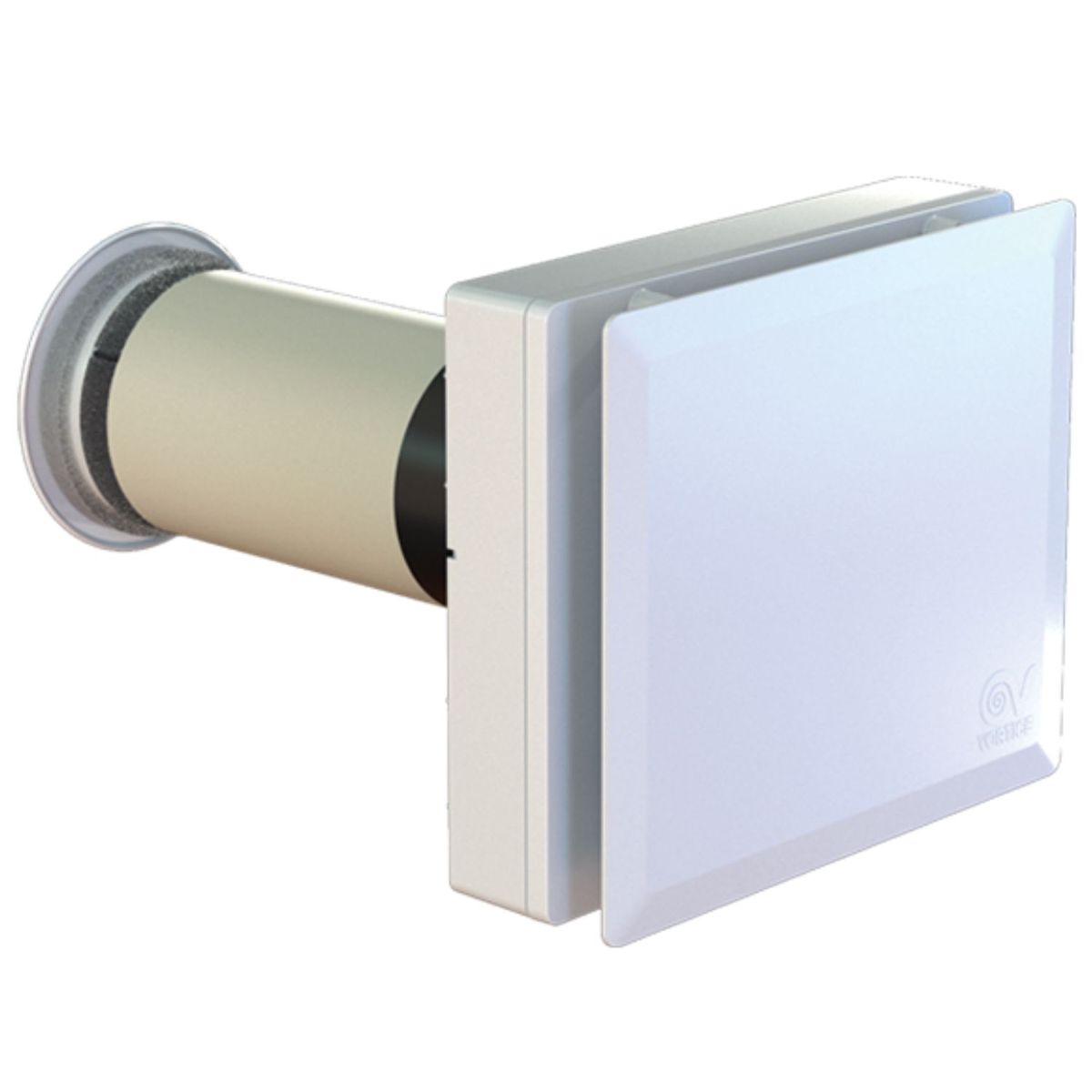

Vortice 12434 - VORT HRW 30 MONO EVO heat recovery unit

Vortice 12434 - VORT HRW 30 MONO EVO heat recovery unit

SKU: VOR0000012434
Barcode: 8010300124346
Brand: Vortice
Wall mounted heat recovery unit for decentralised ventilation, for domestic or commercial environments
€256.20pcs
⏰ Order now and receive it: between and
Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

The VORT HRW 30 MONO EVO is a decentralized controlled mechanical ventilation (CMV) system designed to ensure high internal air quality through effective exchange of ambient air.

The unit is wall-mounted and is ideal for both new buildings and renovations, thanks to its compact design and ease of assembly via a 100 mm hole, the internal ceramic heat exchanger, made of hexagonal cells, allows for the recovery of up to 90% of the heat from the extracted air, significantly reducing energy losses.

The high-efficiency EC motor is equipped with five speeds, which allow the air flow to be adapted to the needs of the environment, thus balancing energy consumption and acoustic comfort.

It is possible to select different operating modes: continuous ventilation with heat recovery, extraction only or intake only, the controls are integrated directly on the appliance for simple and immediate management.

The double filtration system protects the exchanger and improves the quality of the air introduced, the external structure is made of shock-proof and UV-resistant plastic resin, guaranteeing long life even in difficult environmental conditions.

Datasheet

• Decentralized wall-mounted heat recovery unit

• Wall installation, 100 mm hole

• Shockproof and anti-UV plastic resin structure

• Hexagonal cell ceramic heat exchanger

• Heat recovery efficiency Up to 90% at minimum air flow

• High efficiency EC fan motor

• Operating speed 5 levels selectable

• Operating modes: heat recovery, extraction only, injection only

• On-board machine controls

• Filtration two filters, ISO Coarse 65% and pre-filter dust filter

• Applications in residential and commercial environments, new construction or renovation


Package Contents:

• Ventilation unit

• Ceramic exchanger

• Pair of filters

• Installation manual

Properties

Cerifications:
Electrical expert
C E
