Description

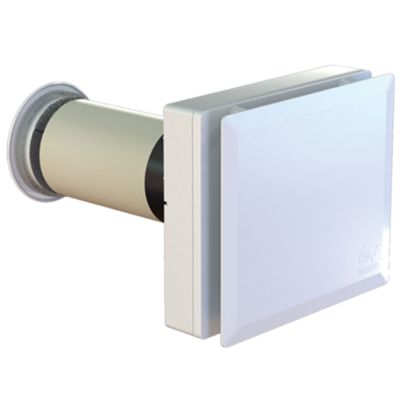

The VORT HRW 30 MONO EVO HCS is a decentralized controlled mechanical ventilation (CMV) unit designed to improve air quality in residential and commercial environments. Thanks to its compact design, it can be easily installed on the wall via a 100 mm hole, making it suitable for both new construction and renovations.
The hexagonal cell ceramic heat exchanger allows a heat recovery efficiency of up to 90% at minimum air flow. The high-efficiency EC fan motor offers five operating speeds, allowing to balance performance and energy consumption.
The device has a built-in relative humidity sensor that automatically adjusts ventilation based on humidity levels, helping to prevent mold and condensation. The included one-way remote control allows you to set parameters and view useful information about the product's operation.
The shock-absorbent and UV-resistant plastic resin structure ensures durability and resistance over time. In addition, the external rubber grille with anti-insect net protects the unit from external elements.
Datasheet
• Decentralized wall-mounted heat recovery unit
• Wall installation, 100 mm hole
• Shockproof and anti-UV plastic resin structure
• Hexagonal cell ceramic heat exchanger
• Heat recovery efficiency up to 90% at minimum air flow
• High efficiency EC fan motor
• Operating speed 5 levels selectable
• Heat recovery, extraction only, injection only
• On-board controls and one-way remote control
• Built-in humidity sensor, automatically adjusts ventilation
• Two filters, ISO Coarse 65% and dust pre-filter
• External rubber grill with insect net
• Dimensions (AxBxCxD) 23.1 x 20 x 7.3 x 26 cm
• Insulation class II
• Power supply 230 V
• Maximum absorbed power 4 W
• Sound pressure at 3m Max 49.2 dB(A), Med 32.0 dB(A), Min 19.1 dB(A)
• Energy efficiency class A+
• Application in residential and commercial environments, new construction or renovation
