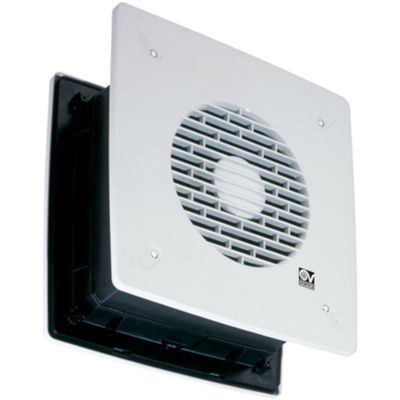

Vortice 12456 - VARIO I 230/9 ARI LL S wall mounted helical extractor
Description
Helical extractor fan designed for recessed wall installation, its construction in ABS plastic resin resistant to aging caused by exposure to the sun (UV resistant) ensures durability over time.
The motor, thermally protected and mounted on ball bearing supports, is combined with a helical impeller in thermoplastic material with wing profile blades, ensuring silent and efficient operation.
The reversibility function allows the appliance to be used for both air intake and extraction, the automatically operated damper prevents the entry of cold air and bad odors when the appliance is switched off.
The noise emissions are low, making the vacuum cleaner suitable for environments where a low noise level is required.
Datasheet
• Built-in wall-mounted helical extractor fan
• Nominal diameter 23 cm
• UV-resistant ABS plastic resin material
• Thermally protected motor, with shaft mounted on ball bearing supports
• Helical impeller in thermoplastic material with wing profile blades
• Maximum extraction flow rate 680 m³/h
• Maximum ventilation flow rate 350 m³/h
• Max absorbed power 35 W
• Power supply voltage 220–240 V
• IPX4 protection rating
• Insulation class II
• Exhaust Ø 335 ÷ 340 mm
• Maximum ambient temperature for continuous operation 50°C
• Reversibility function (air intake or extraction)
• Automatic shutter
