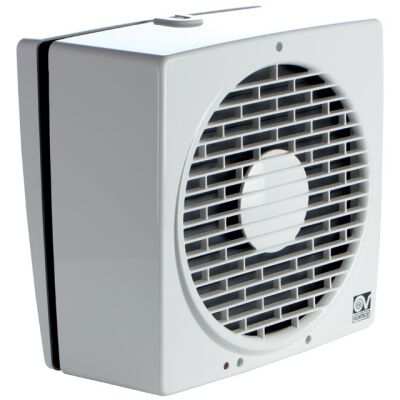

Vortice 12612 - helical aspirator 150/6 AR

SKU: VOR0000012612

Barcode: 8010300126128

Brand: Vortice

Wall or window helical extractor, diameter 150 mm, for residential ventilation

€161.10pcs

⏰ Order now and receive it: between and

Based on the shipping address, VAT may change during the purchase process. For more information, click here.

verified 2 years warranty sync Easy return within 14 days shopping_cart Buy with tax benefits

Description

Helical extractor fan designed for installation on walls or windows in residential environments which, thanks to its nominal diameter of 150 mm, is ideal for ensuring effective air exchange in rooms such as kitchens, bathrooms and laundries.

The thermally protected motor, with shaft mounted on self-lubricating bushings, ensures reliable and long-lasting operation, while the helical impeller in thermoplastic material with wing profile blades is designed to optimise aerodynamic performance.

The UV-resistant ABS plastic resin structure guarantees a long life over time, maintaining the aesthetic appearance unchanged.

Datasheet

Model for window/wall installation.

• Construction in ABS plastic resin resistant to aging due to exposure to the sun "UV resistant".

• Nominal diameter 150 mm.

• Thermally protected motor, with shaft mounted on self-lubricating bushing supports, combined with a helical impeller in thermoplastic material with aerofoil blades.

• Maximum flow rate in extraction: 235 m3/h Maximum flow rate in ventilation: 150 m3/h.

• IMQ and IMQ PERFORMANCE certified safety and performance.

• Speed controllable via Vortice regulator.
