Description

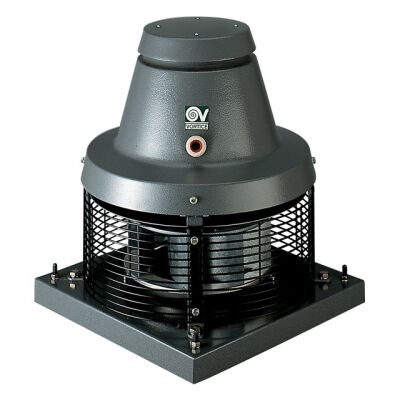

Draught activator specifically designed to optimize smoke extraction in domestic fireplaces, its base is made of phosphated steel sheet, painted with grey epoxy powder with a hammered effect, ensuring resistance to atmospheric agents.
The intake nozzle, with aerodynamic profile, is integrated with the base to optimize the air flow, the engine cover is made of painted steel sheet, ensuring durability and protection.
The thermally protected asynchronous motor, mounted on ball bearings, is combined with a centrifugal impeller with self-cleaning backward curved aluminium blades, dynamically balanced according to the UNI ISO 1940 standard, Class 6.3.
The maximum flow rate is 750 m³/h, with a continuous operating temperature of up to 200°C and includes an electro-welded steel anti-bird protection grille and a counterframe for fixing to the flue.
Datasheet
• Base in phosphated steel sheet
• Aerodynamic profile, integrated with the base to optimize airflow
• Painted steel sheet for strength and durability
• Thermally protected synchronous motor, mounted on ball bearings
• Centrifugal impeller with self-cleaning backward curved aluminium blades, balanced according to UNI ISO 1940, Class 6.3
• Maximum flow rate 750 m³/h
• Continuous operating temperature up to 200°C
• Anti-bird protection grille in electro-welded steel
• Counterframe included for fixing to the flue
