Description

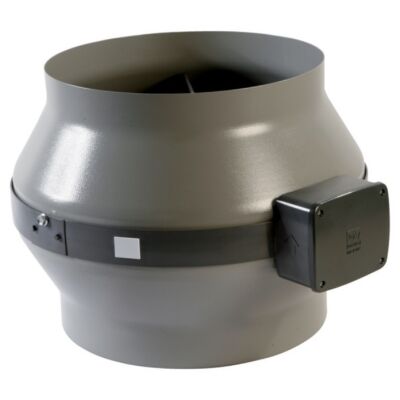

The Vortice CA 200 MD E is designed to offer high performance and reliability over time. The heart of the device is a thermally protected external rotor AC motor with shaft mounted on ball bearing supports, which ensures silent operation and a long operating life.
The backward curved centrifugal impeller is designed to optimize airflow and increase fan efficiency and one of the distinguishing features of this model is the compatibility with remote environmental sensors, including temperature, relative humidity, smoke and presence sensors.
The fan casing is made of pickled, phosphated and polyester powder coated steel, offering effective protection against atmospheric agents and ensuring a long life even in difficult environmental conditions.
The metal brackets for wall mounting, made of galvanized steel, are included and facilitate the installation of the device, ensuring optimal stability.
The fan operates at three speeds, allowing for precise adjustment of airflow to suit specific needs.
This versatility makes it suitable for a wide range of applications, from the ventilation of residential premises to that of commercial and industrial environments.
Datasheet
• Nominal diameter 20 cm
• External rotor AC motor, thermally protected, with shaft on ball bearings
• Backward curved centrifugal impeller
• Compatibility with remote temperature, relative humidity, smoke and presence sensors
• Casing material: pickled, phosphated and polyester powder coated steel
• Metal fixing brackets in galvanized steel
• 3 selectable speeds
• Degree of protection IP44
• Isolation II
• Voltage 220-240 V
