Description

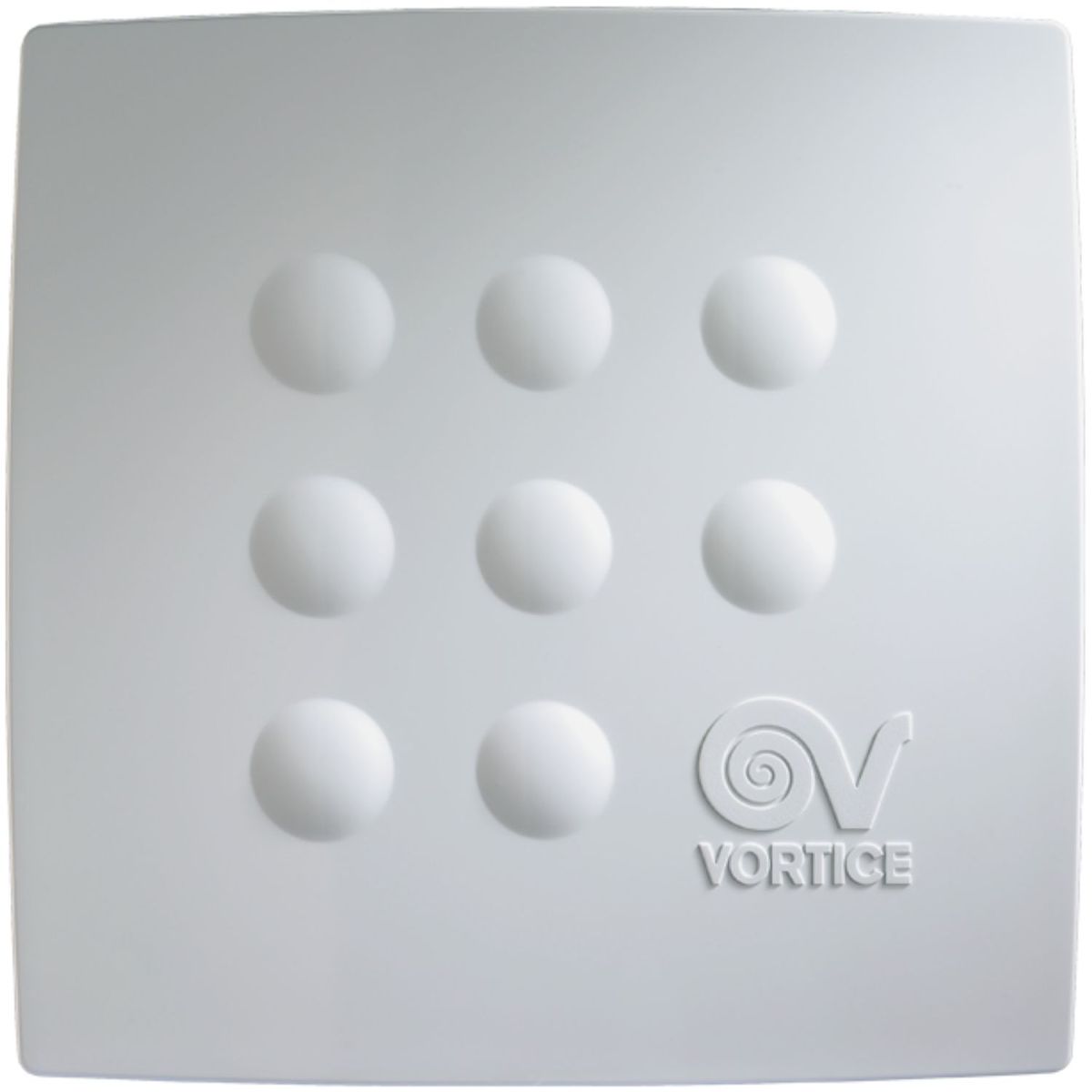

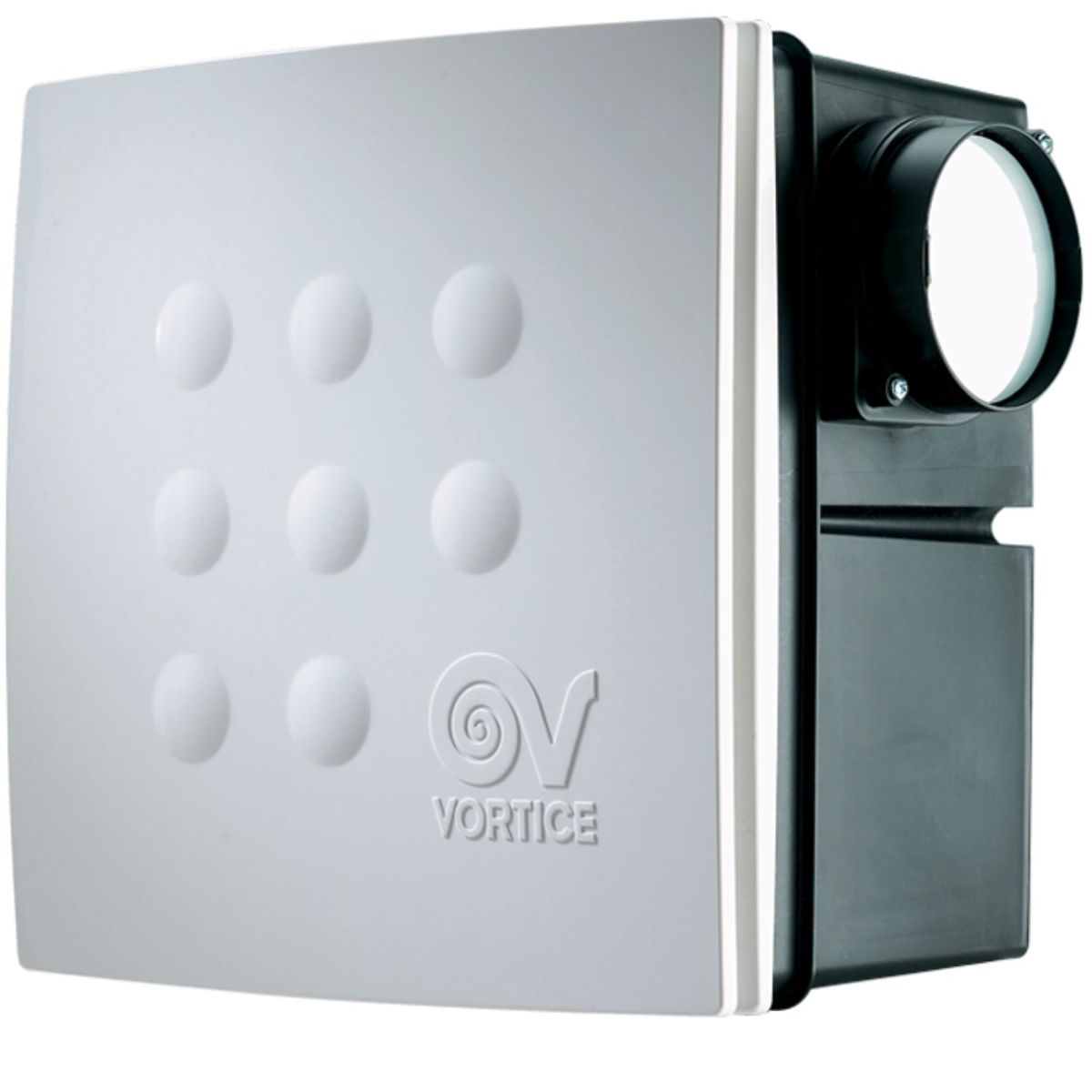

Built-in centrifugal extractor fan designed to ensure effective ventilation in small and medium-sized domestic or professional environments. Thanks to its compact design with closed front panel and discreet aesthetics, it is ideal for wall or ceiling installations in spaces where visual impact is important.
It is equipped with a forward-bladed centrifugal impeller, a 2-speed induction motor with self-lubricating bushings and built-in thermal protection, the external part is made of white ABS, while the built-in unit is made of reinforced black plastic resin, ensuring robustness and durability over time.
It allows a flow rate of up to 110 m³/h and is perfect for ducted air extraction in humid environments such as bathrooms, laundries or kitchens.
Datasheet
• Nominal diameter 100 mm
• Maximum flow rate 110 m³/h
• Power absorbed at maximum speed 27 W
• IPX4 protection rating
• Insulation class II
