Description

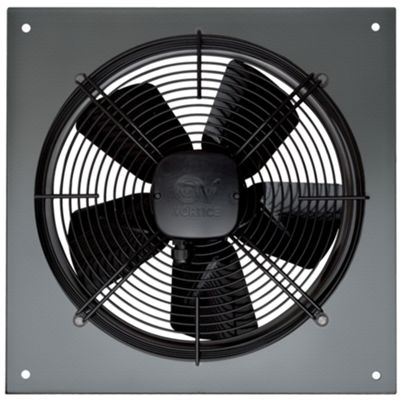

Single-phase, single-speed axial fan, ideal for wall installation in environments such as offices, gyms, restaurants, discos, dry cleaners and warehouses, the panel is made of phosphated steel sheet and epoxy powder coated with a hammered effect, ensuring resistance to atmospheric agents.
The nozzle, integrated into the panel, is calibrated to optimize the air flow and facilitate connection to the delivery duct, the protection grille, compliant with the UNI ISO 13857 standard, also acts as an engine support and is made of electro-welded steel rings painted with black epoxy paint.
The ease of removal simplifies maintenance and cleaning operations of the fan, the motor is of the AC single-phase type with external rotor, with shaft mounted on supports with ball bearings, insulation class F and thermal overload protection.
The impeller is dynamically balanced according to the UNI ISO 1940 standard, with 5 blades pressed in electro-galvanized steel sheet and painted with black polyester powder.
The fan can be controlled in speed using a Vortice regulator.
Datasheet
• Nominal duct diameter 250 mm
• IP54 protection rating
• Class I insulation
• Number of phases 1
• Number of poles 4
• Max absorbed power 38 W
• Voltage 220-240 V
• Max flow rate 764 m³/h
• Sound power Lw 59.0 dB(A)
• Sound pressure Lp at 1 m 48.0 dB(A)
• Sound pressure Lp at 3 m 38.5 dB(A)
• Rotation speed 1400 RPM
